NP01SW2

Overview

• Tipology:
• Accessory

• Product category:
• Videoprojectors

• Family:
• Extender

• Product line:
• HDBaseT

Features

• Product colour
• White

• Type

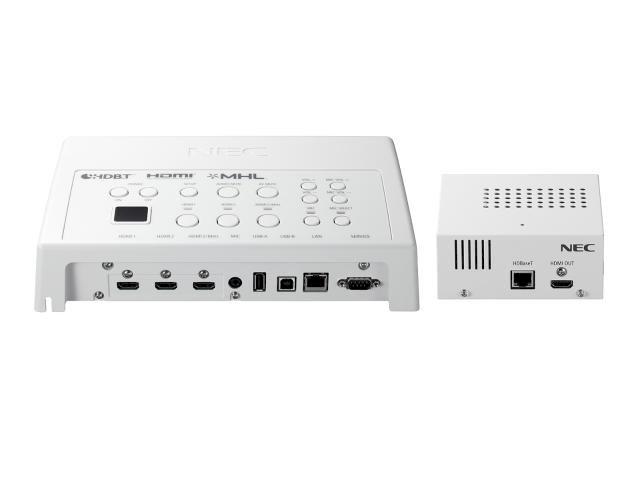

• AV transmitter & receiver

• Cable types supported
• Cat5e, Cat6

• Maximum transfer distance
• 30 m

• LED indicators
• Y

• Supported video modes
• 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

• Supported graphics resolutions
• 640 x 480 (VGA), 1920 x 1200 (WUXGA)

• HDCP
• Y

• Certification
• CE, FCC, EAC, SASO

• Colour depth
• 12 bit

• HDBaseT certified
• Y

Packaging data

• Package dimensions (WxDxH)
• 354 x 175 x 333 mm

Technical details

• Sustainability certificates
• RoHS

Weight & dimensions

• Weight
• 500 g

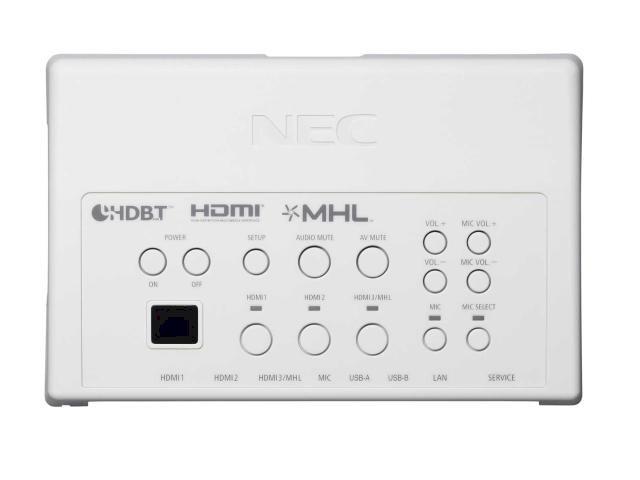

• Transmitter dimensions (WxDxH)
• 285 x 64 x 187 mm

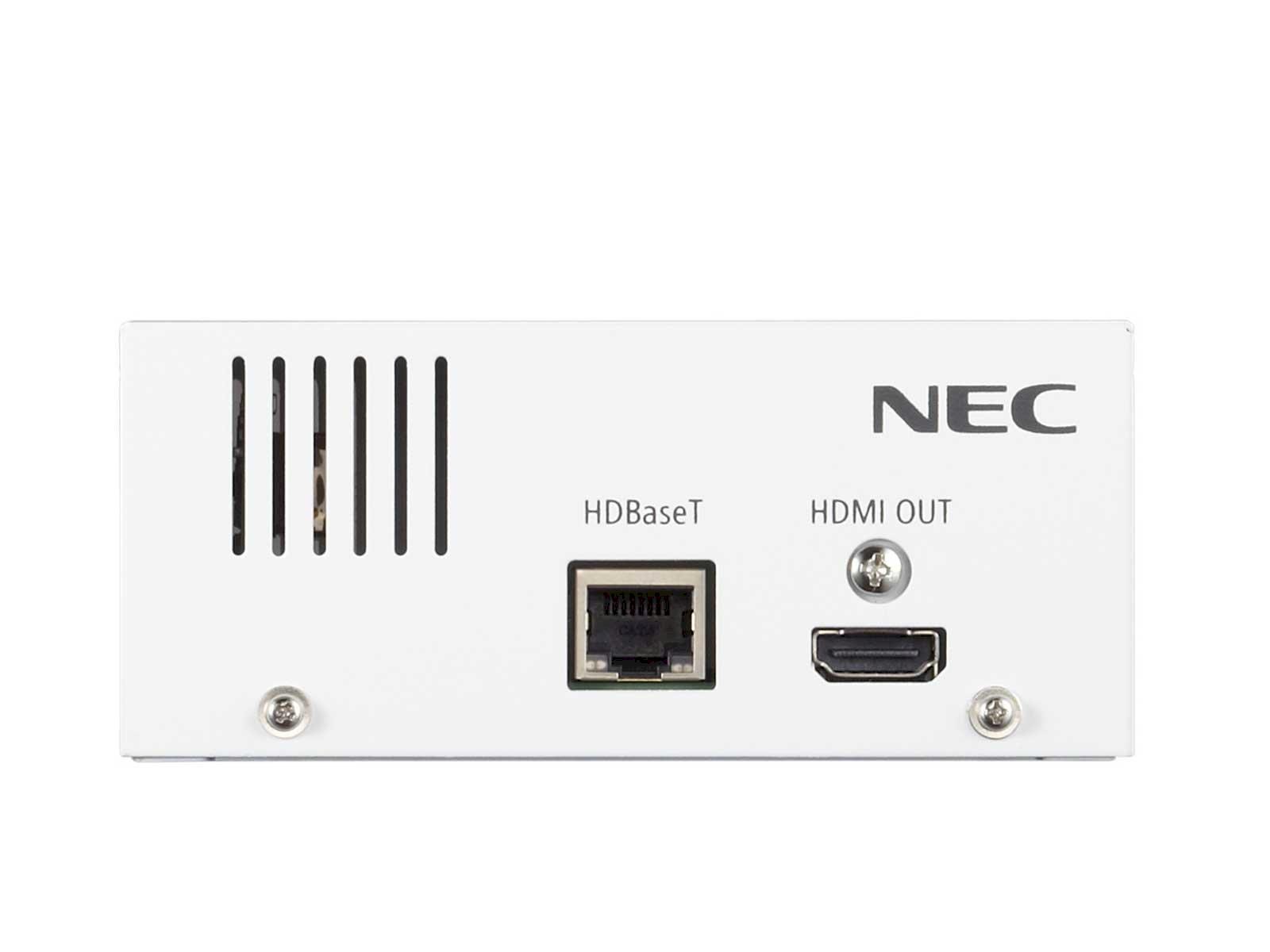

• Receiver dimensions (WxDxH)
• 126 x 52 x 119 mm

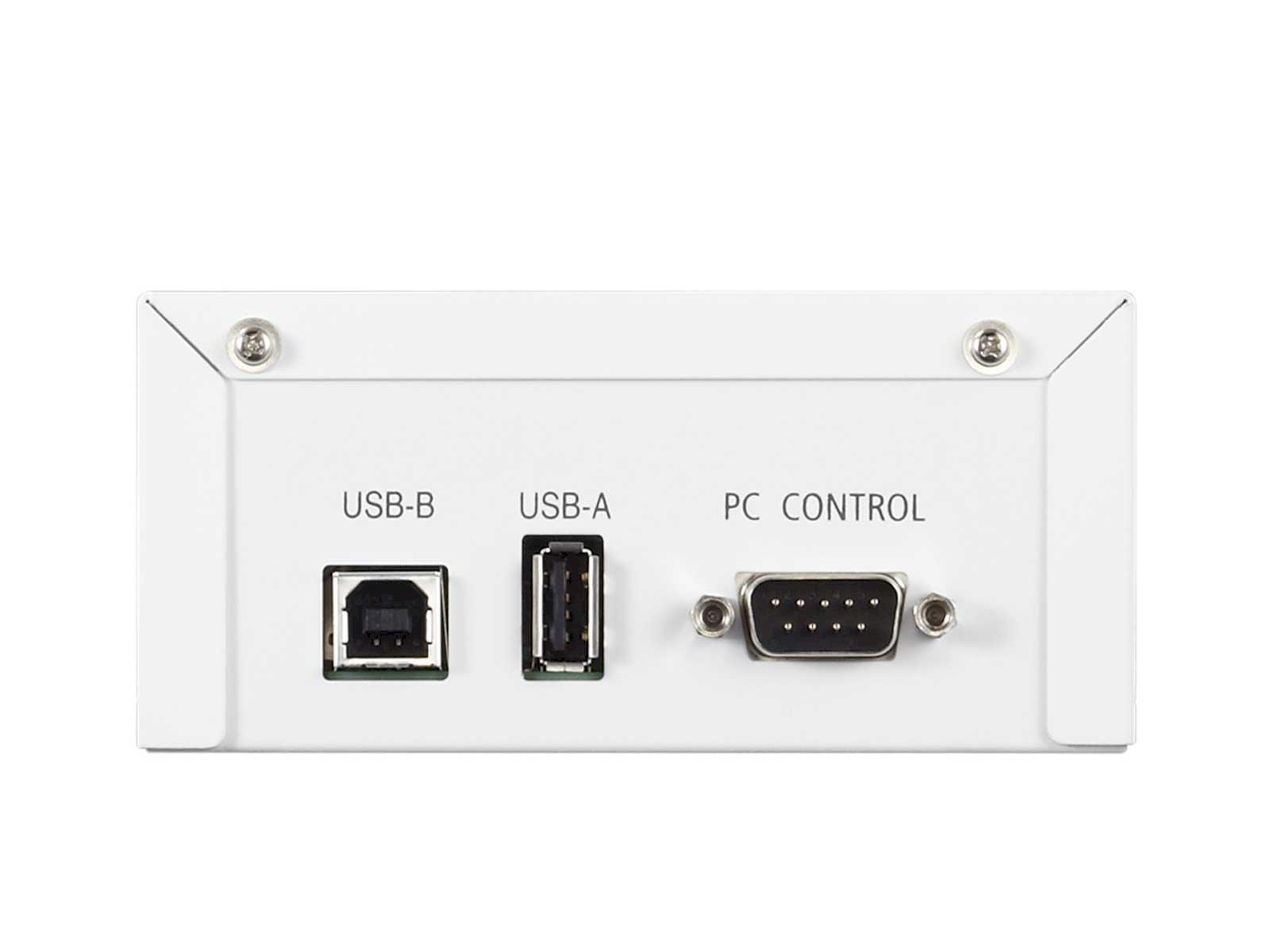

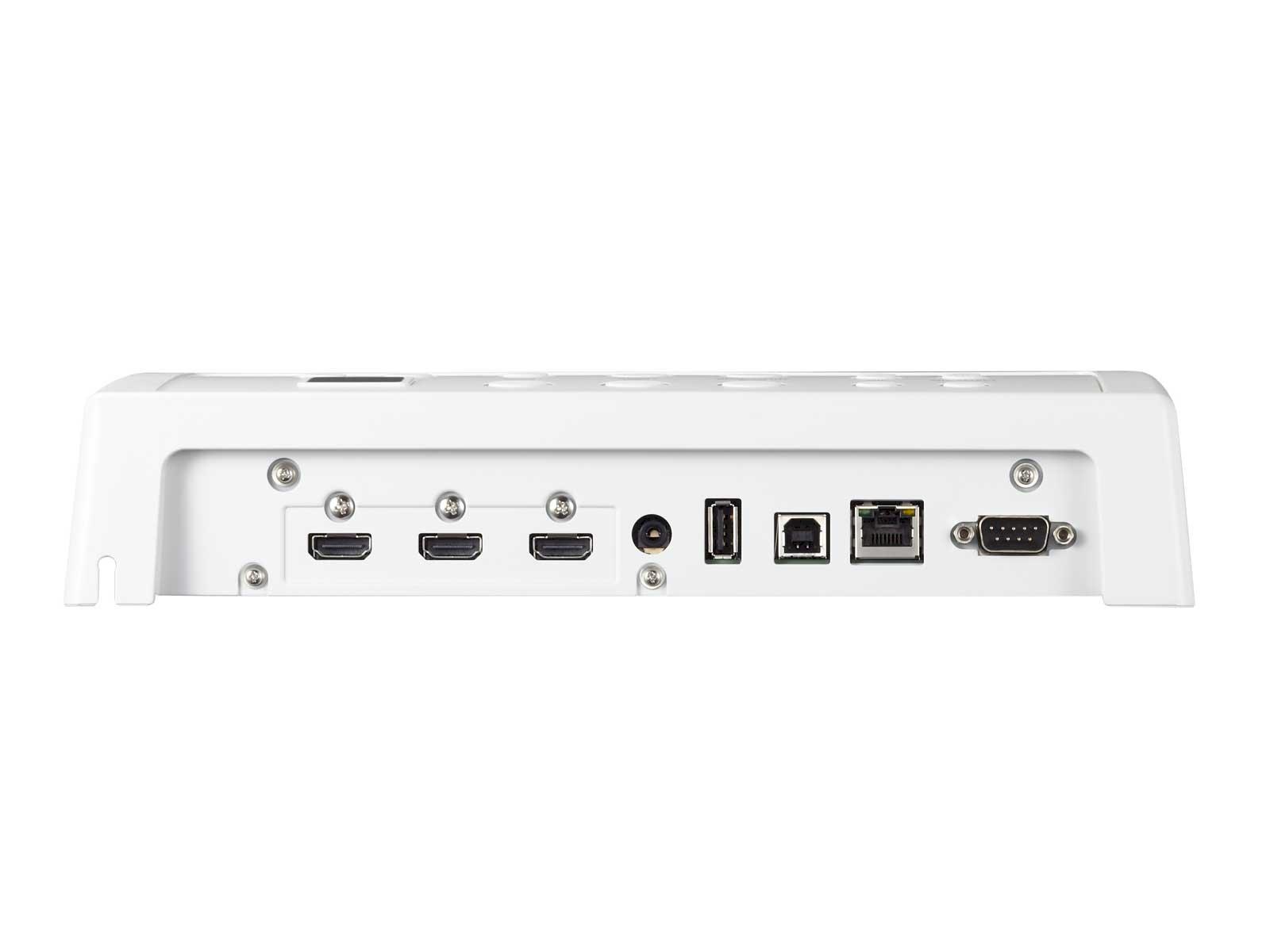

Ports & interfaces

• RJ-45 input ports
• 2

• Number of HDMI outputs
• 1

• RS-232 output ports
• 1

• Remote (IR) input
• 1

• Ethernet LAN
• Y

• RJ-45 output ports
• 1

• HDMI in
• 3

• RS-232 input ports
• 1

• HDBaseT port
• Y

• USB ports quantity
• 4

• USB version
• 2.0

• USB connector type
• USB Type-A, USB Type-B

Power

• Power consumption (typical)
• 21 W

• AC input voltage
• 100-240 V

• AC input frequency
• 50 - 60 Hz

• Input current
• 1.4 A

Operational conditions

• Operating temperature (T-T)
• 5 - 40 °C

• Storage temperature (T-T)
• 10 - 50 °C

• Operating relative humidity (H-H)
• 20 - 80%

• Storage relative humidity (H-H)
• 20 - 80%

Packaging content

• Manual
• Y

• AC adapter included
• Y

• Cables included
• HDMI, RS-232

• Mounting kit
• Y
