100014553

Overview

• Tipology:
• Accessory

• Product category:
• OPS Standard

• Family:
• Processor CORE I7

• Product line:
• SSD 128 GB

Weight & dimensions

• Weight
• 900 g

• Width
• 120 mm

• Depth
• 190 mm

• Height
• 30 mm

• Package width
• 190 mm

• Package depth
• 260 mm

• Package height
• 70 mm

• Package weight
• 1 kg

Performance

• Product colour
• Black

• Motherboard chipset
• Intel® HM170

• Audio chip
• Realtek ALC887

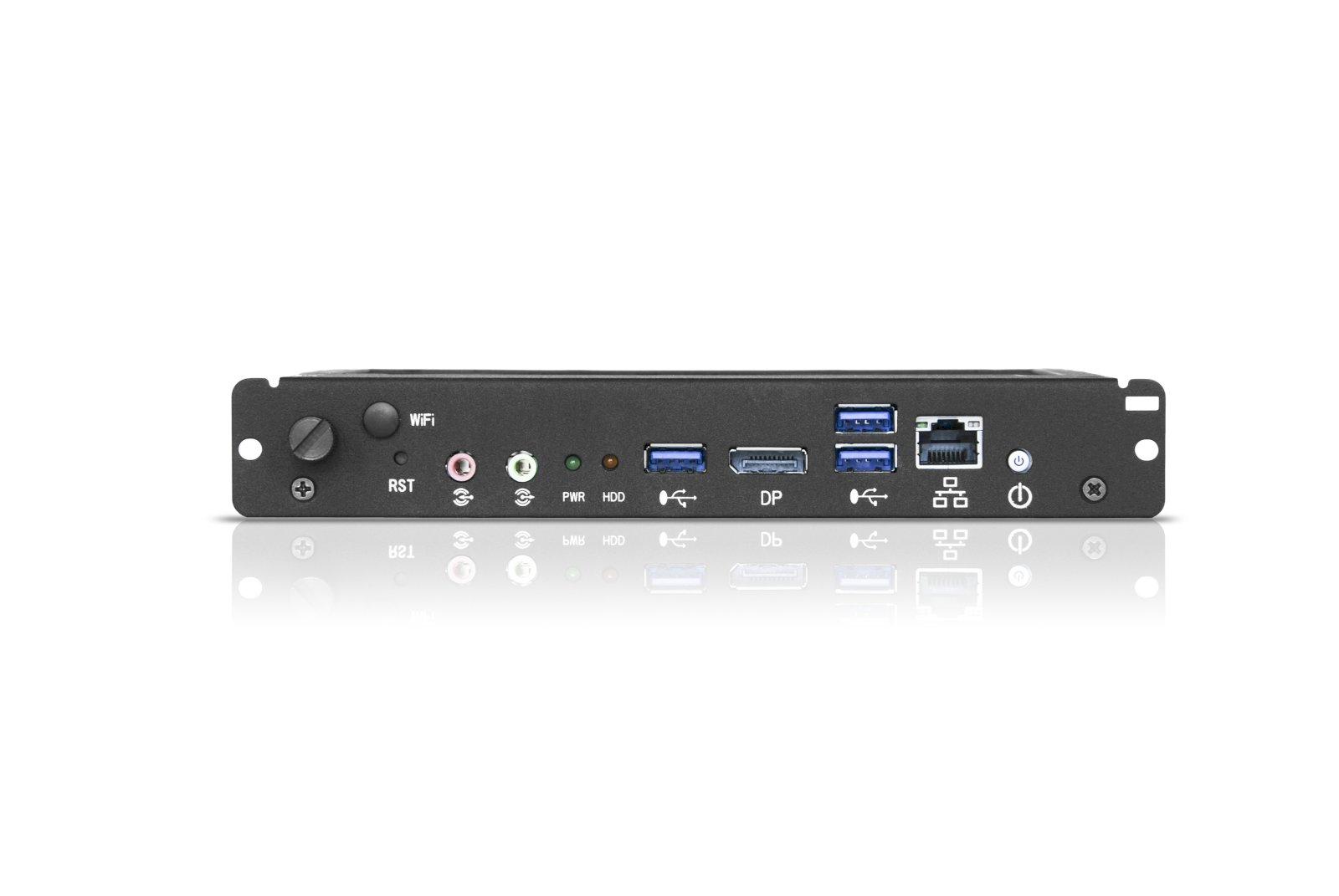

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 3

• Ethernet LAN (RJ-45) ports
• 1

• Microphone in
• Yes

• DisplayPorts quantity
• 1

• Headphone outputs
• 1

• DVI port
• No

Operational conditions

• Operating temperature (T-T)
• 0 - 35 °C

• Operating relative humidity (H-H)
• 0 - 90%

Network

• Wi-Fi
• No

• Ethernet LAN data rates
• 10,100,1000 Mbit/s

• Cabling technology
• 10/100/1000Base-T(X)

• Wake-on-LAN ready
• Yes

Storage

• Card reader integrated
• No

• Total storage capacity
• 128 GB

• Storage media
• SSD

• SSD capacity
• 128 GB

• SSD interface
• M.2

Certificates

• Certification
• CE/FCC

Logistics data

• Harmonized System (HS) code
• 84713000

Software

• Operating system installed
• Windows 10 IoT Enterprise

Processor

• Processor family
• Intel® Core™ i7

• Processor generation
• 6th gen Intel® Core™ i7

• Processor model
• i7-6820EQ

• Processor cores
• 4

• Processor frequency
• 2,8 GHz

• Processor boost frequency
• 3,5 GHz

• Processor cache
• 8 MB

• Processor threads
• 8

• Bus type
• DMI3

• Processor socket
• BGA 1440

• Processor cache type
• Smart Cache

• System bus rate
• 8 GT/s

• Processor lithography
• 14 nm

• Processor operating modes
• 64-bit

• Conflict-Free processor
• Yes

• Processor series
• Intel Core i7-6800 Mobile Series

• Processor codename
• Skylake

• Tjunction
• 100 °C

• PCI Express slots version
• 3.0

• Maximum number of PCI Express lanes
• 16

• PCI Express configurations
• 1x16, 1x8+2x4, 2x8

• Maximum internal memory supported by processor
• 64 GB

• Memory types supported by processor
• DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM

• Memory clock speeds supported by processor
• 1600,1866,2133 MHz

• Memory bandwidth supported by processor (max)
• 34.1 GB/s

• Stepping
• R0

• Thermal Design Power (TDP)
• 45 W

• ECC supported by processor
• No

Memory

• Internal memory
• 8 GB

• Internal memory type
• DDR4-SDRAM

• Maximum internal memory
• 16 GB

• Memory slots
• 2x SO-DIMM

• Memory channels
• Dual-channel

Graphics

• Discrete graphics card
• No

• On-board graphics card
• Yes

• Discrete graphics card model
• Not available

• On-board graphics card model
• Intel® HD Graphics 530

• On-board graphics card base frequency
• 350 MHz

• On-board graphics card dynamic frequency (max)
• 1000 MHz

• Maximum on-board graphics card memory
• 64 GB

• Number of displays supported (on-board graphics)
• 3

• On-board graphics card DirectX version
• 12.0

• On-board graphics card OpenGL version
• 4.4

• On-board graphics card ID
• 0x191B

Processor special features

• Intel 64
• Yes

• Enhanced Intel SpeedStep Technology
• Yes

• Embedded options available
• Yes

• Intel Clear Video Technology
• Yes

• Intel VT-x with Extended Page Tables (EPT)
• Yes

• Intel TSX-NI
• Yes

• Idle States
• Yes

• Intel Trusted Execution Technology
• Yes

• Execute Disable Bit
• Yes

• Intel Software Guard Extensions (Intel SGX)
• Yes

• Intel Virtualization Technology for Directed I/O (VT-d)
• Yes

• Intel Virtualization Technology (VT-x)
• Yes

• Intel Enhanced Halt State
• Yes

• Intel Identity Protection Technology version
• 1,00

• Intel Secure Key Technology version
• 1,00

• Intel TSX-NI version
• 1,00

• Intel® vPro™ Platform Eligibility
• No

• Intel® Wireless Display (Intel® WiDi)
• Yes

• Intel® AES New Instructions (Intel® AES-NI)
• Yes

• Processor package size
• 42 x 28 mm

• Processor code
• SR2DT

• Processor ARK ID
• 90426

• Intel® Turbo Boost Technology
• 2.0

• Intel® Identity Protection Technology (Intel® IPT)
• Yes

• Supported instruction sets
• AVX 2.0, SSE4.1, SSE4.2

• Intel® Hyper Threading Technology (Intel® HT Technology)
• Yes

• Intel® Quick Sync Video Technology
• Yes

• Intel® InTru™ 3D Technology
• Yes

• Intel® Clear Video HD Technology (Intel® CVT HD)
• Yes

• Intel® Insider™
• Yes

• Thermal Monitoring Technologies
• Yes

• Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
• Yes

• Graphics & IMC lithography
• 14 nm

• Intel® Secure Key
• Yes

• Intel® OS Guard
• Yes
