100014901

Overview

• Tipology:
• Accessory

• Product category:
• OPS Standard

• Family:
• Processore Intel Atom

• Product line:
• eMMC 64 GB

Weight & dimensions

• Weight
• 700 g

• Width
• 93 mm

• Depth
• 97 mm

• Height
• 32 mm

• Package width
• 248 mm

• Package depth
• 212 mm

• Package height
• 59 mm

• Package weight
• 1 kg

Performance

• Product type
• Mini PC

Design

• Product colour
• Black

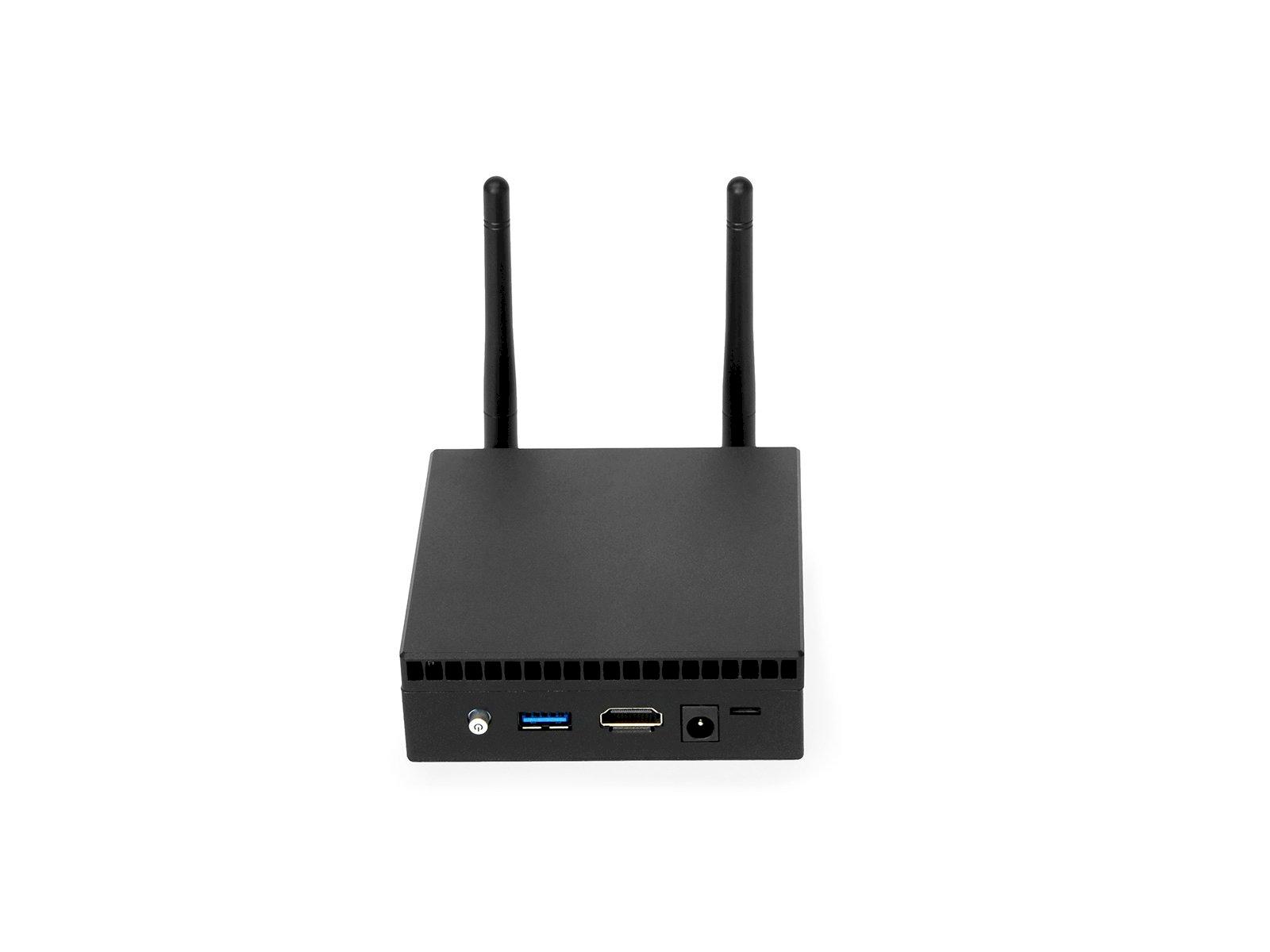

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
• 1

• HDMI ports quantity
• 1

• Ethernet LAN (RJ-45) ports
• 1

• USB 2.0 ports quantity
• 3

• DVI port
• No

• RS‐232/422 port
• Y

Operational conditions

• Operating temperature (T-T)
• 0 - 45 °C

• Operating relative humidity (H-H)
• 0 - 90%

Network

• Ethernet LAN
• Y

• Wi-Fi
• Y

• Wi-Fi standards
• 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

• Bluetooth
• Y

• Bluetooth version
• 4.2

• Ethernet LAN data rates
• 10,100,1000 Mbit/s

• Top Wi-Fi standard
• Wi-Fi 5 (802.11ac)

• Wake-on-LAN ready
• Y

Storage

• Card reader integrated
• Y

• Total storage capacity
• 64 GB

• Compatible memory cards
• MicroSD (TransFlash)

• Storage media
• Flash

• Optical drive type
• No

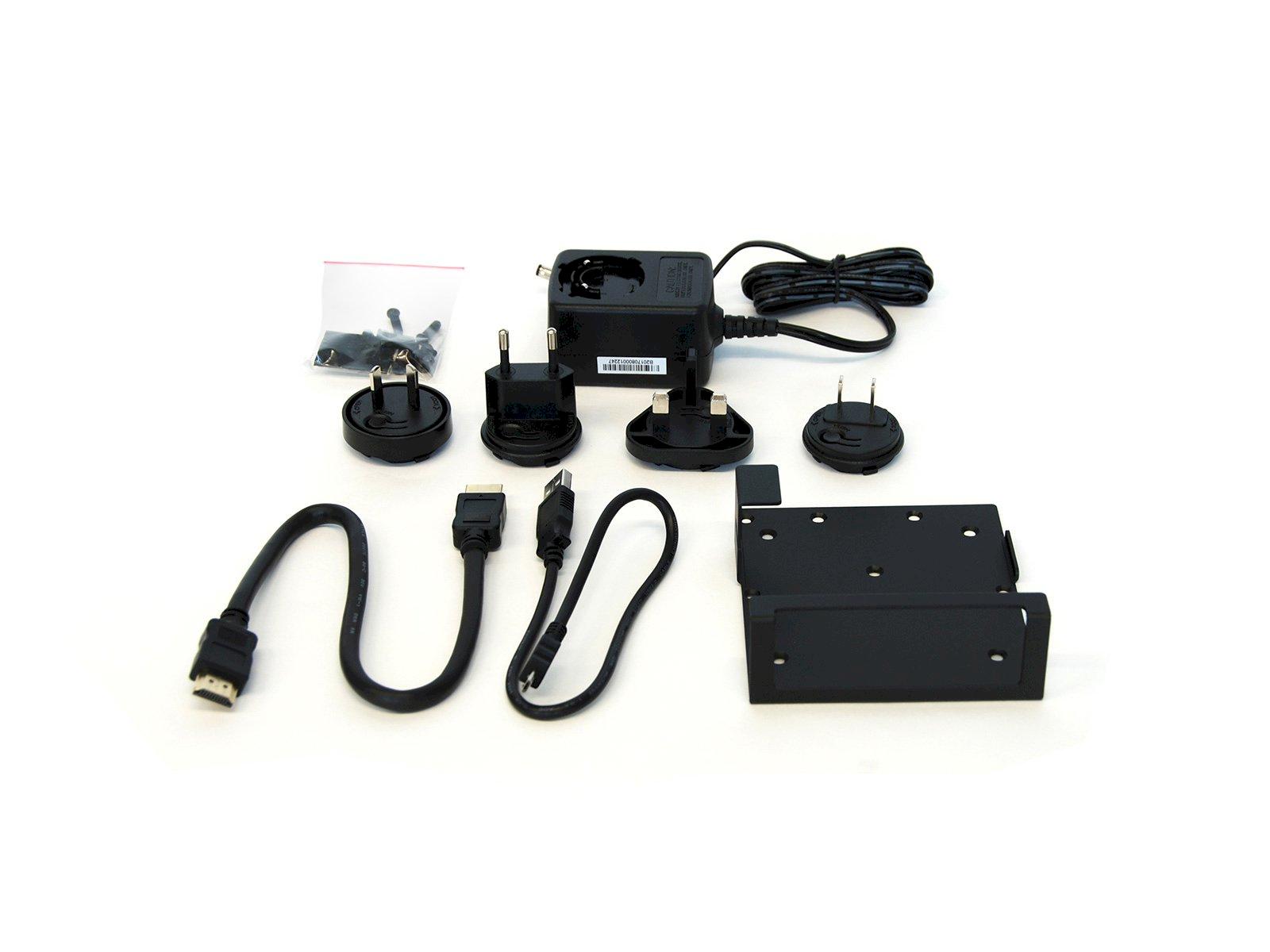

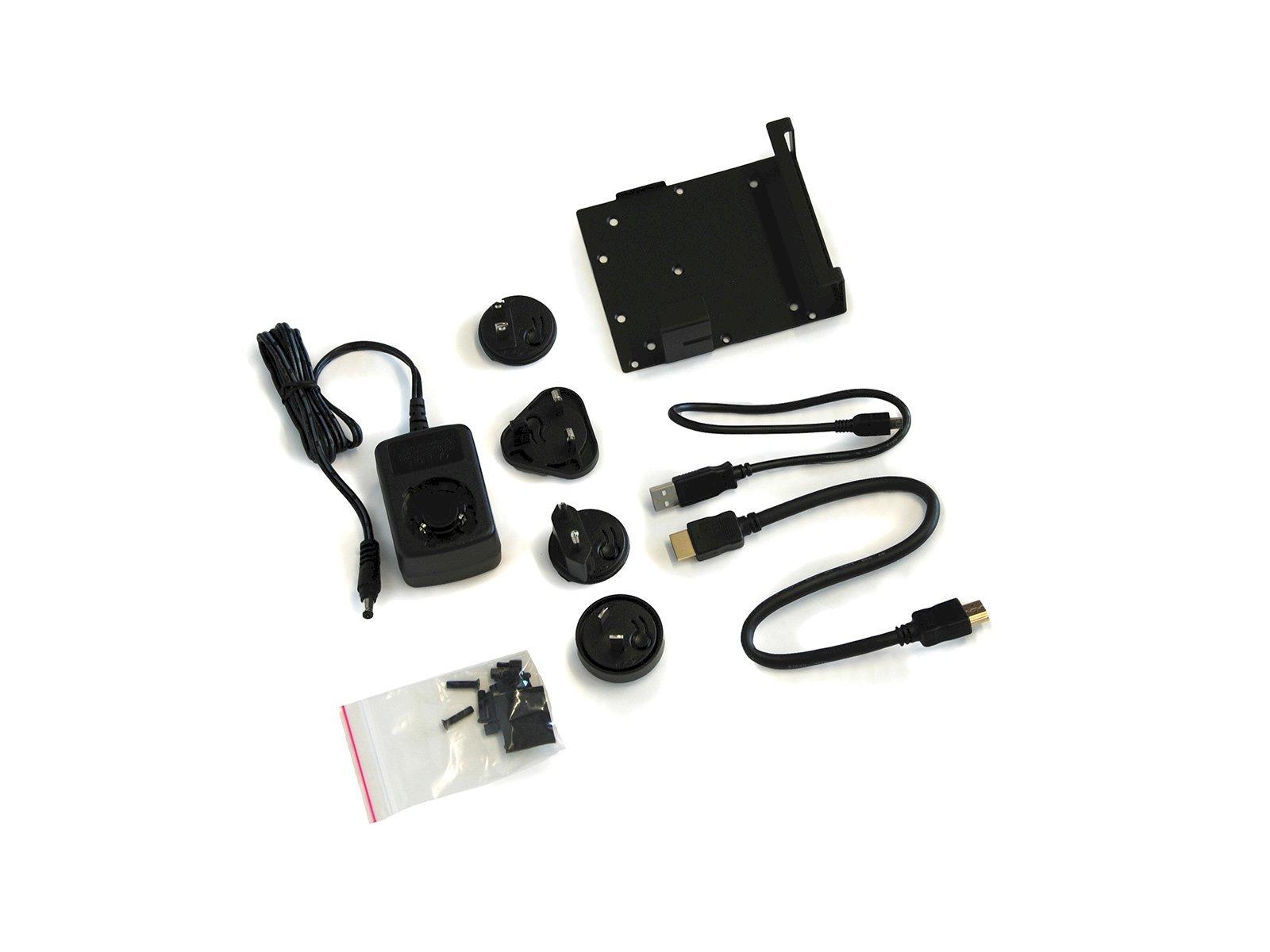

Packaging content

• Manual
• Y

• Display included
• No

Certificates

• Certification
• CE, FCC class B

Software

• Operating system installed
• Windows 10 IoT Enterprise

Processor

• Processor manufacturer
• Intel

• Processor family
• Intel Atom®

• Processor model
• x5-Z8350

• Processor cores
• 4

• Processor frequency
• 1,44 GHz

• Processor boost frequency
• 1,92 GHz

• Processor cache
• 2 MB

• Processor threads
• 4

• Processor socket
• BGA 592

• Processor cache type
• Smart Cache

• Processor lithography
• 14 nm

• Processor operating modes
• 64-bit

• Processor codename
• Cherry Trail

• Tjunction
• 90 °C

• PCI Express slots version
• 2.0

• Maximum number of PCI Express lanes
• 1

• PCI Express configurations
• 1x1

• Maximum internal memory supported by processor
• 2 GB

• Memory types supported by processor
• DDR3L-RS-SDRAM

• Memory clock speeds supported by processor
• 1600 MHz

• Memory bandwidth supported by processor (max)
• 12.8 GB/s

• Processor series
• Intel Atom x5 Series

• Scenario Design Power (SDP)
• 2 W

Memory

• Internal memory
• 4 GB

• Internal memory type
• DDR3L-SDRAM

• Memory slots
• 1x SO-DIMM

• Maximum internal memory
• 4 GB

• Memory clock speed
• 1600 MHz

• Memory channels
• Single-channel

Graphics

• Discrete graphics card
• No

• On-board graphics card
• Y

• Discrete graphics card model
• Not available

• On-board graphics card model
• Intel® HD Graphics 400

• On-board graphics card base frequency
• 200 MHz

• On-board graphics card dynamic frequency (max)
• 500 MHz

• Maximum on-board graphics card memory
• 2 GB

• Number of displays supported (on-board graphics)
• 2

• On-board graphics card burst frequency
• 500 MHz

• Number of execution units
• 12

Processor special features

• Intel 64
• Y

• Embedded options available
• No

• Intel Stable Image Platform Program (SIPP)
• No

• Intel Virtualization Technology (VT-x)
• Y

• Intel® Wireless Display (Intel® WiDi)
• Y

• Intel® AES New Instructions (Intel® AES-NI)
• Y

• Processor package size
• 17 x 17 mm

• Processor code
• SR2KT

• Intel Identity Protection Technology version
• 1,00

• Intel Stable Image Platform Program (SIPP) version
• 0,00

• Processor ARK ID
• 93361

• Intel® Turbo Boost Technology
• No

• Intel® Identity Protection Technology (Intel® IPT)
• Y

• Conflict-Free processor
• Y

• Intel Secure Boot
• Y

• Intel Secure Boot Technology version
• 1,00
