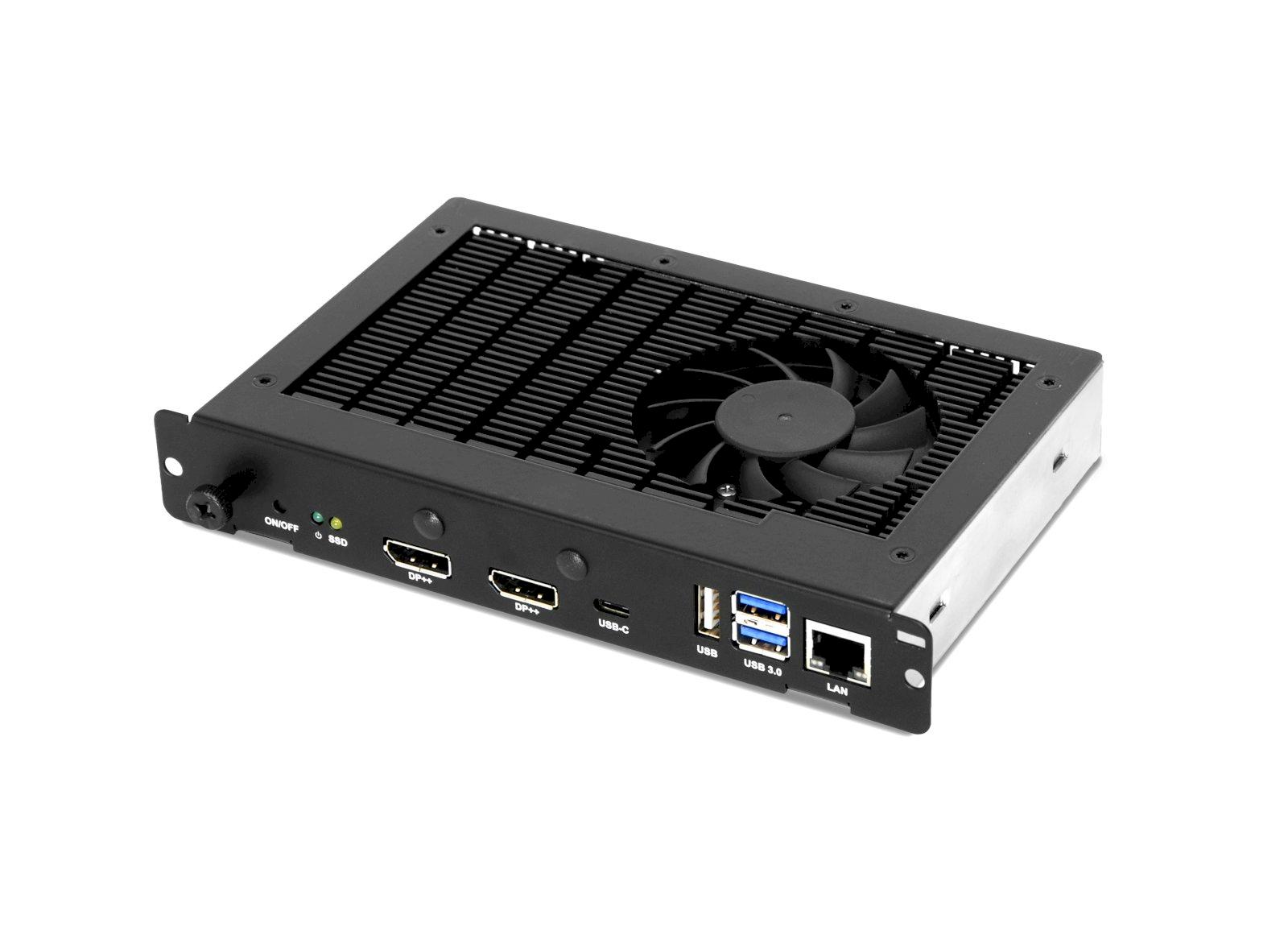

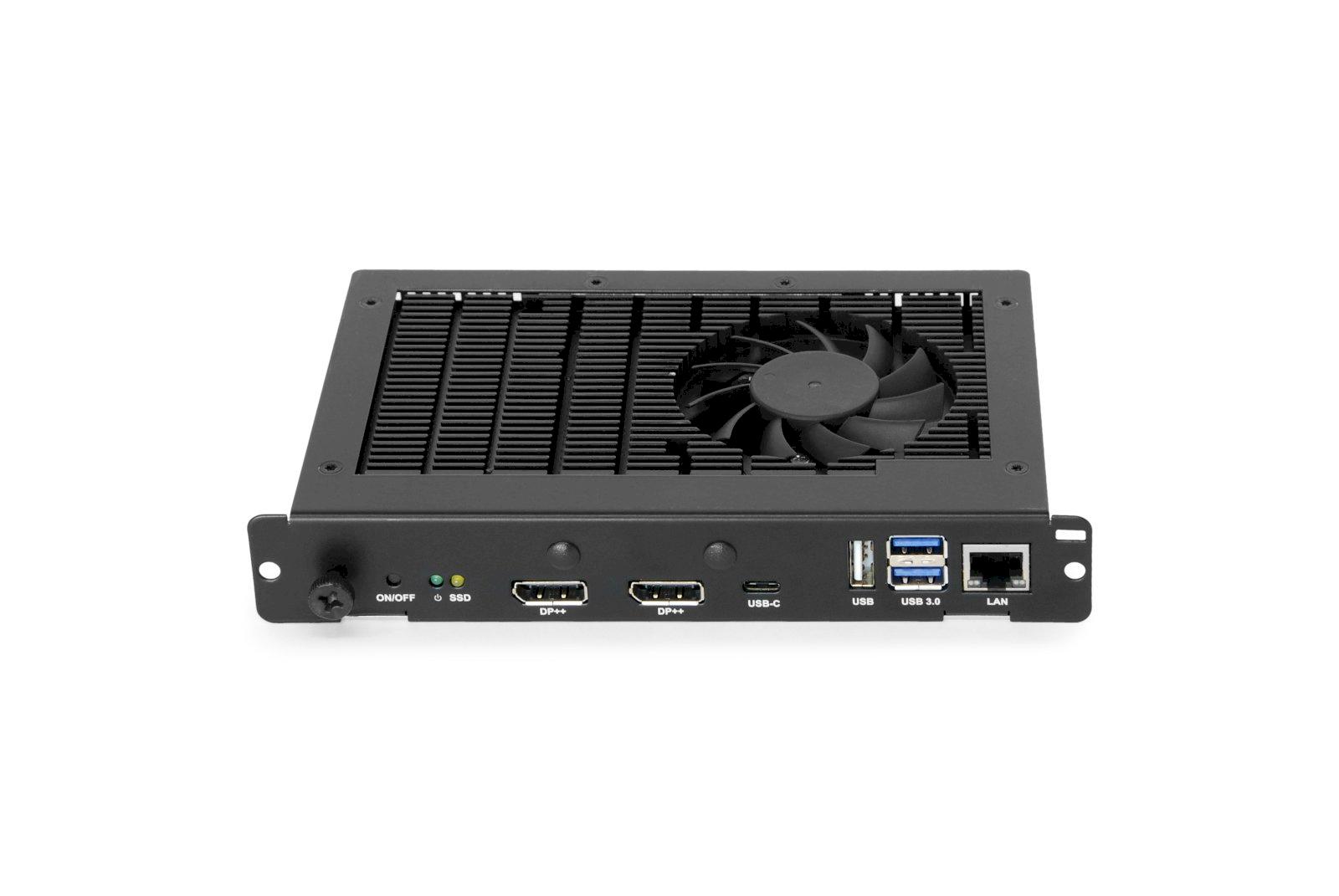

OPS-Kbl-i5v-s4-64-W10IoT B
- € 1.678,00 + VAT
- Recommended End User Price
Description:
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 7th generation Intel® Core™ i processors deliver crisp 4K UHD playback through a new class of computing power available on our next generation
of OPS Slot-in computing. Configuring the Slot-in PCs to meet customers’ demands with a tailor-made solution is easy through a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi, TPM and 4G connectivity. The majority of NEC Large Format displays plus PX and PH Installation projectors feature the OPS option slot for seamless integration.
- DATA SHEET
- DOCUMENTS
Overview
- Tipology:
- Accessory
- Product category:
- OPS Standard
- Family:
- Processor CORE i5
- Product line:
- SSD 64 GB
Weight & dimensions
- Weight
- 800 g
- Width
- 190 mm
- Depth
- 120 mm
- Height
- 30 mm
- Package width
- 260 mm
- Package depth
- 190 mm
- Package height
- 70 mm
- Package weight
- 900 g
Performance
- Product colour
- Black
- Number of antenna connectors
- 2
Ports & interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- DisplayPorts quantity
- 2
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
Power
- Power consumption (typical)
- 64,5 W
- Power consumption (standby)
- 8 W
Operational conditions
- Operating temperature (T-T)
- 5 - 35 °C
Network
- Wi-Fi
- No
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cabling technology
- 10/100/1000Base-T(X)
Storage
- Total storage capacity
- 64 GB
- Storage media
- SSD
- SSD capacity
- 64 GB
- SSD interface
- Serial ATA
- Number of storage drives installed
- 1
- Number of storage drives supported
- 2
Software
- Operating system installed
- Windows 10 IoT LTSB
- Operating system architecture
- 64-bit
Processor
- Processor family
- Intel® Core™ i5
- Processor generation
- 7th gen Intel® Core™ i5
- Processor model
- i5-7440EQ
- Processor cores
- 4
- Processor frequency
- 2,9 GHz
- Processor boost frequency
- 3,6 GHz
- Processor cache
- 6 MB
- Processor threads
- 4
- Configurable TDP-down
- 35 W
- Processor socket
- BGA 1440
- Processor cache type
- Smart Cache
- System bus rate
- 8 GT/s
- Bus type
- DMI3
- Processor lithography
- 14 nm
- Processor operating modes
- 64-bit
- Conflict-Free processor
- Y
Memory
- Internal memory
- 4 GB
- Internal memory type
- DDR4-SDRAM
- Maximum internal memory
- 32 GB
Graphics
- Discrete graphics card
- No
- On-board graphics card
- Y
- On-board graphics card family
- Intel® HD Graphics
- On-board graphics card model
- Intel® HD Graphics 630
Processor special features
- Intel 64
- Y
- Enhanced Intel SpeedStep Technology
- Y
- Embedded options available
- Y
- Intel Clear Video Technology
- Y
- Intel VT-x with Extended Page Tables (EPT)
- Y
- Intel TSX-NI
- Y
- Idle States
- Y
- Intel Trusted Execution Technology
- Y
- Execute Disable Bit
- Y
- Intel Software Guard Extensions (Intel SGX)
- Y
- Intel Virtualization Technology for Directed I/O (VT-d)
- Y
- Intel Virtualization Technology (VT-x)
- Y
- Intel Enhanced Halt State
- Y
- Intel Identity Protection Technology version
- 1,00
- Intel TSX-NI version
- 1,00
- Intel Secure Boot
- Y
- Intel HD Graphics
- Y
- Intel® vPro™ Platform Eligibility
- No
