100015585

Code: 100015585 EAN/UPC: 4260400615044, 4719879820041




€ 873,00 + VAT
Recommended End User Price
  • € 873,00 + VAT
  • Recommended End User Price
  •


Description:

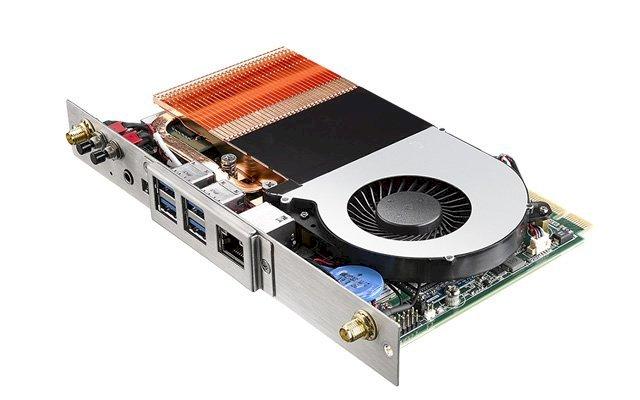

Intel Smart Display Module (SDM) 8th Generation - The Standard Celeron SDM

This Celeron powered Intel SDM Large Slot-in PC supports a wide variety of applications such as flight information controllers in airports, media players for retail or corporate signage, menu board play-out systems in restaurants and many more.

Tailor-made solutions can be provided with a wide choice of processors, solid-state drives, RAM and operating systems as well as Wi-Fi connectivity.


Versatile Performance - the G4930E Intel® Celeron processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software.
High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
100% compatibility and enhanced feature-set - in combination with supported NEC large format displays.
Built for business - the TPM chipset provides enhanced hardware security through integrated cryptographic keys.
High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Accessory
  • Product category:
  • SDM
  • Family:
  • Processor Intel Celeron N4020
  • Product line:
  • SSD 128 GB

Weight & dimensions

  • Weight
  • 1 kg
  • Width
  • 175 mm
  • Depth
  • 100 mm
  • Height
  • 20 mm
  • Package weight
  • 1,2 kg
  • Package width
  • 325 mm
  • Package depth
  • 245 mm
  • Package height
  • 75 mm

Design

  • Product colour
  • Black, Bronze, Green, Silver

Ports & interfaces

  • Ethernet LAN (RJ-45) ports
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 4
  • Mini DisplayPorts quantity
  • 1
  • Combo headphone/mic port
  • Y

Network

  • Wi-Fi
  • Y
  • Ethernet LAN
  • Y
  • Wi-Fi standards
  • 802.11a
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Cabling technology
  • 10/100/1000Base-T(X)
  • Top Wi-Fi standard
  • 802.11a
  • WLAN controller manufacturer
  • Intel
  • WLAN controller model
  • Intel Dual Band Wireless-AC 9260
  • Antenna type
  • 2x2

Storage

  • Card reader integrated
  • N
  • Total SSDs capacity
  • 128 GB
  • Total storage capacity
  • 128 GB
  • Storage media
  • SSD
  • Optical drive type
  • N
  • SSD capacity
  • 128 GB
  • SSD interface
  • M.2

Packaging content

  • Display included
  • N

Software

  • Operating system installed
  • Windows 10 IoT
  • Operating system architecture
  • 64-bit

Processor

  • Processor manufacturer
  • Intel
  • Processor model
  • G4930E
  • Processor family
  • Intel® Celeron®
  • Processor cores
  • 2
  • Processor frequency
  • 2,4 GHz

Memory

  • Internal memory
  • 8 GB
  • Internal memory type
  • DDR4-SDRAM

Graphics

  • Discrete graphics card
  • N
  • Discrete graphics card model
  • Not available
  • On-board graphics card
  • Y
  • On-board graphics card model
  • Intel® HD Graphics 630

Processor special features

  • Intel 64
  • Y
  • Enhanced Intel SpeedStep Technology
  • Y
  • Embedded options available
  • Y
  • Intel Clear Video Technology
  • Y
  • Intel VT-x with Extended Page Tables (EPT)
  • Y
  • Intel TSX-NI
  • N
  • Idle States
  • Y
  • Intel Stable Image Platform Program (SIPP)
  • N
  • Intel Trusted Execution Technology
  • N
  • Execute Disable Bit
  • Y
  • Intel Software Guard Extensions (Intel SGX)
  • Y
  • CPU configuration (max)
  • 1
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Y
  • Intel Virtualization Technology (VT-x)
  • Y
