100015614

Code: 100015614 EAN/UPC: 4260400614986, 4719879820881




€ 1.600,00 + VAT
Recommended End User Price
  • € 1.600,00 + VAT
  • Recommended End User Price
  •


Description:

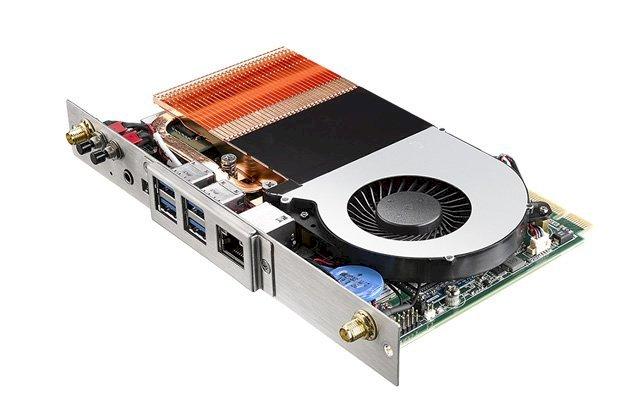

Intel Smart Display Module (SDM) 8th Generation - The Advanced Core i5 SDM
This Core i5 powered Intel SDM Large Slot-in PC supports a wide variety of applications such as interactive signage applications, vidoe walls and more complex intelligent signage installation where sensor and other data is processed and displayed in real time.

Tailor-made solutions can be provided with a wide choice of solid-state drives, RAM and operating systems.

High Performance - the Core i5-8400H processor with 8GB dual channel DDR4 RAM delivers fast data processing and is capable to run multiple operations and applications at the same time; powering the next generation of embedded computing.
Tailored for your needs - customer specific configurations for RAM, SSD, operating system and pre-installed software.
High usage flexibility -thanks to wide connectivity such as 4 x USB, MiniDP++, Gigabit Ethernet, Audio and optional WiFi; there’s no need to add additional adapters or signal splitters.
Seamless and fully embedded - the Intel® SDM form factor provides a compact and fully embedded solution ensuring that all connectors are integrated including Power, Video & Audio Signals and RS232.
100% compatibility and enhanced feature-set - in combination with supported NEC large format displays.
Built for business - the vPro® technology and TPM chipset provide enhanced performance, security and remote management capabilities.
High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Accessory
  • Product category:
  • SDM
  • Family:
  • Processor CORE i5
  • Product line:
  • SSD 128 GB

Weight & dimensions

  • Weight
  • 1 kg
  • Width
  • 175 mm
  • Depth
  • 100 mm
  • Height
  • 20 mm
  • Package weight
  • 1,2 kg
  • Package width
  • 325 mm
  • Package depth
  • 245 mm
  • Package height
  • 75 mm

Design

  • Product colour
  • Black, Bronze, Green, Silver

Ports & interfaces

  • Ethernet LAN (RJ-45) ports
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 4
  • Mini DisplayPorts quantity
  • 1
  • Combo headphone/mic port
  • Y

Network

  • Ethernet LAN
  • Y
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Cabling technology
  • 10/100/1000Base-T(X)
  • Antenna type
  • 2x2

Storage

  • Card reader integrated
  • N
  • Total SSDs capacity
  • 128 GB
  • Total storage capacity
  • 128 GB
  • Storage media
  • SSD
  • Optical drive type
  • N
  • SSD capacity
  • 128 GB

Packaging content

  • Display included
  • N

Software

  • Operating system installed
  • Windows 10 IoT
  • Operating system architecture
  • 64-bit

Processor

  • Processor manufacturer
  • Intel
  • Processor generation
  • 8th gen Intel® Core™ i5
  • Processor model
  • i5-8400H
  • Processor family
  • Intel® Core™ i5
  • Processor cores
  • 4
  • Processor frequency
  • 4,2 GHz
  • Configurable TDP-down
  • 35 W
  • Configurable TDP-down frequency
  • 2 GHz
  • Bus type
  • DMI

Memory

  • Internal memory
  • 8 GB
  • Internal memory type
  • DDR4-SDRAM

Graphics

  • Discrete graphics card
  • N
  • Discrete graphics card model
  • Not available
  • On-board graphics card
  • Y
  • On-board graphics card model
  • Intel® HD Graphics 630

Processor special features

  • Intel 64
  • Y
  • Enhanced Intel SpeedStep Technology
  • Y
  • Embedded options available
  • Y
  • Intel Clear Video Technology
  • Y
  • Intel VT-x with Extended Page Tables (EPT)
  • Y
  • Intel TSX-NI
  • Y
  • Idle States
  • Y
  • Intel Stable Image Platform Program (SIPP)
  • Y
  • Intel Trusted Execution Technology
  • Y
  • Execute Disable Bit
  • Y
  • Intel Flex Memory Access
  • Y
  • Intel Software Guard Extensions (Intel SGX)
  • Y
  • CPU configuration (max)
  • 1
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Y
  • Intel Virtualization Technology (VT-x)
  • Y
  • Intel Enhanced Halt State
  • Y
  • Intel Identity Protection Technology version
  • 1,00
  • Intel Stable Image Platform Program (SIPP) version
  • 1,00
  • Intel Secure Key Technology version
  • 1,00
  • Intel TSX-NI version
  • 1,00
