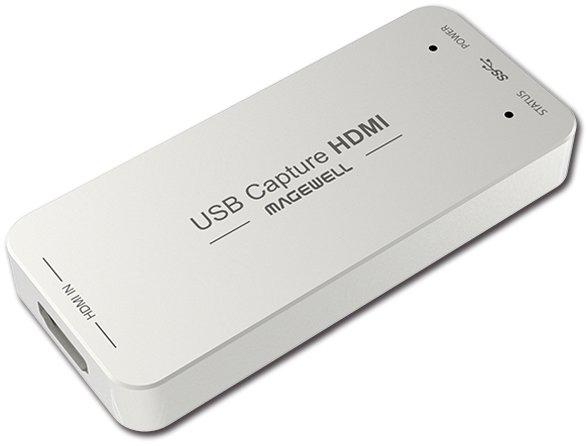

USB Capture HDMI Gen 2

Code: 32060 EAN/UPC: 6936572400921



Capture Format Setting
Set the capture resolution, frame rate and color space. If the capture format is different with the input format, the FPGA in the capture device will automatically do up/down scaling, causing 0 CPU usage. This function is especially useful when scaling by software causes much CPU burden.

Audio Volume Control
The Utility V3 can control the volume of the audio input (recording) and output (playback) of the USB capture (Plus) devices. The functions differ with models. If the system volume is changed, the parameter on the Utility V3 will also change accordingly. Users can click on the icon to quickly mute/unmute a playback/recording device.

Mirror and Flip
This function can reverse the captured image horizontally or vertically, making sure the viewer see the image in the right direction. Eg. When users use Facetime, they can easily mirror the image with the Utility V3.

EDID Editing and Importing
Users can edit and load the EDID of the capture device to support a specific input format, which is not supported by default. Eg. USB Capture HDMI 4K Plus will be able to input at 2560x1440p144 with this function.

Firmware Update
When Internet access is available, Utility V3 automatically checks the firmware version of the capture device and the latest version on the Magewell server. When a higher version is available, Utility V3 will remind users of the update. Users can check the release notes and decide whether they need to update the firmware or not depending on their needs.

Export Diagnose Report
When asking for technical support, users don’t need to manually gather device information. Just one click, and the Utility V3 will export most of the technical information required by the Magewell support team.



  • Tipology:
  • Finished product
  • Product category:
  • Acquisition card
  • Family:
  • HDMI > USB
  • Product line:
  • Converter
  • Cat-Magewell
  • USB 3

Weight & dimensions

  • Width
  • 40,2 mm
  • Depth
  • 12,3 mm
  • Height
  • 92,2 mm


  • Firmware upgradeable
  • Yes
  • Windows operating systems supported
  • Yes
  • Mac operating systems supported
  • Yes
  • Plug and Play
  • Yes
  • Maximum video resolution
  • 2048 x 2160 pixels
  • Supported video modes
  • 1080p
  • Linux operating systems supported
  • Yes
  • Card reader integrated
  • No
  • HD type
  • Not supported


  • Product colour
  • Silver

Ports & interfaces

  • HDMI version
  • 1.3
  • HDMI
  • Yes
  • USB version
  • 3.2 Gen 1 (3.1 Gen 1)
  • USB ports quantity
  • 1
  • Device interface
  • USB

Operational conditions

  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
