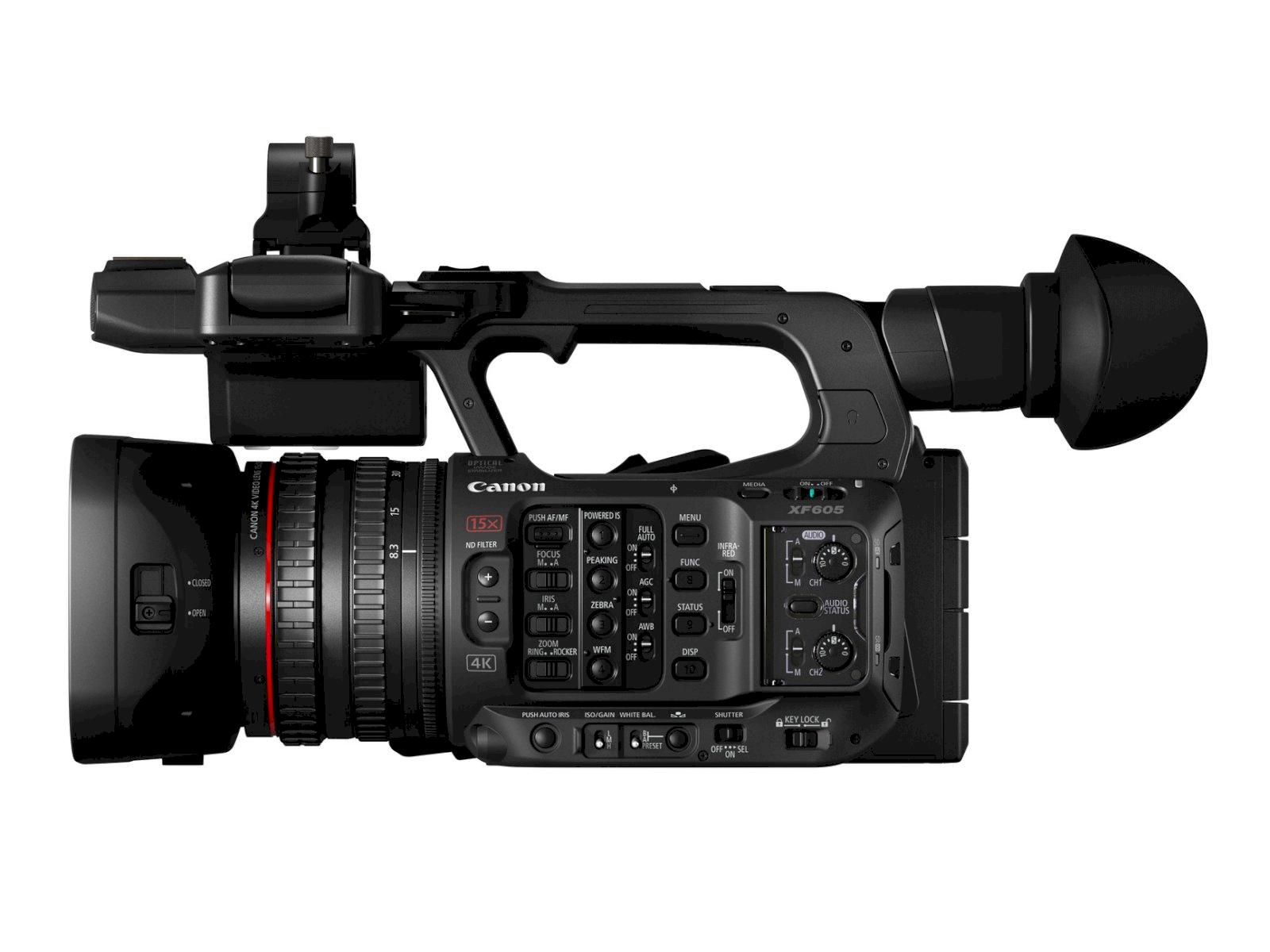

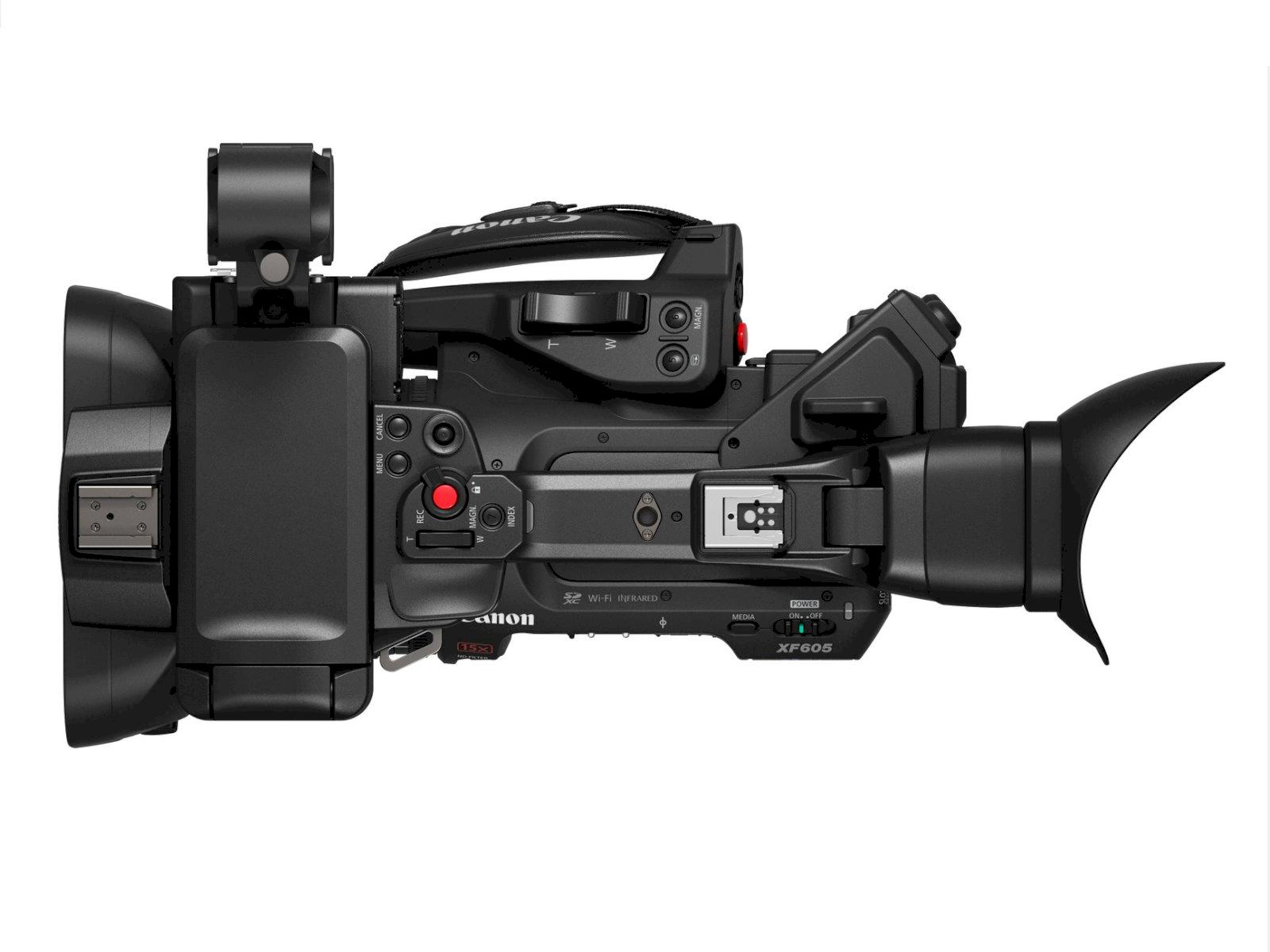

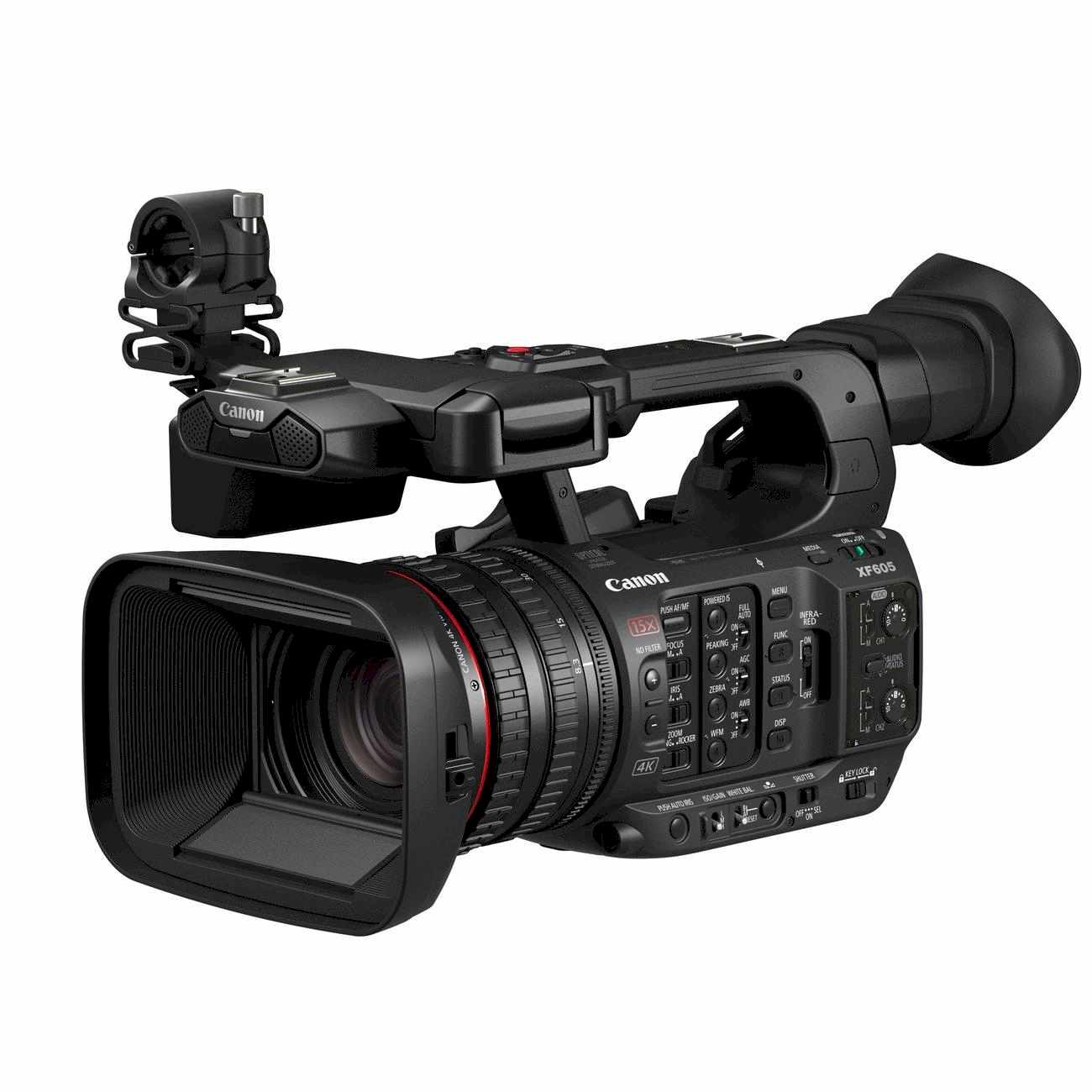

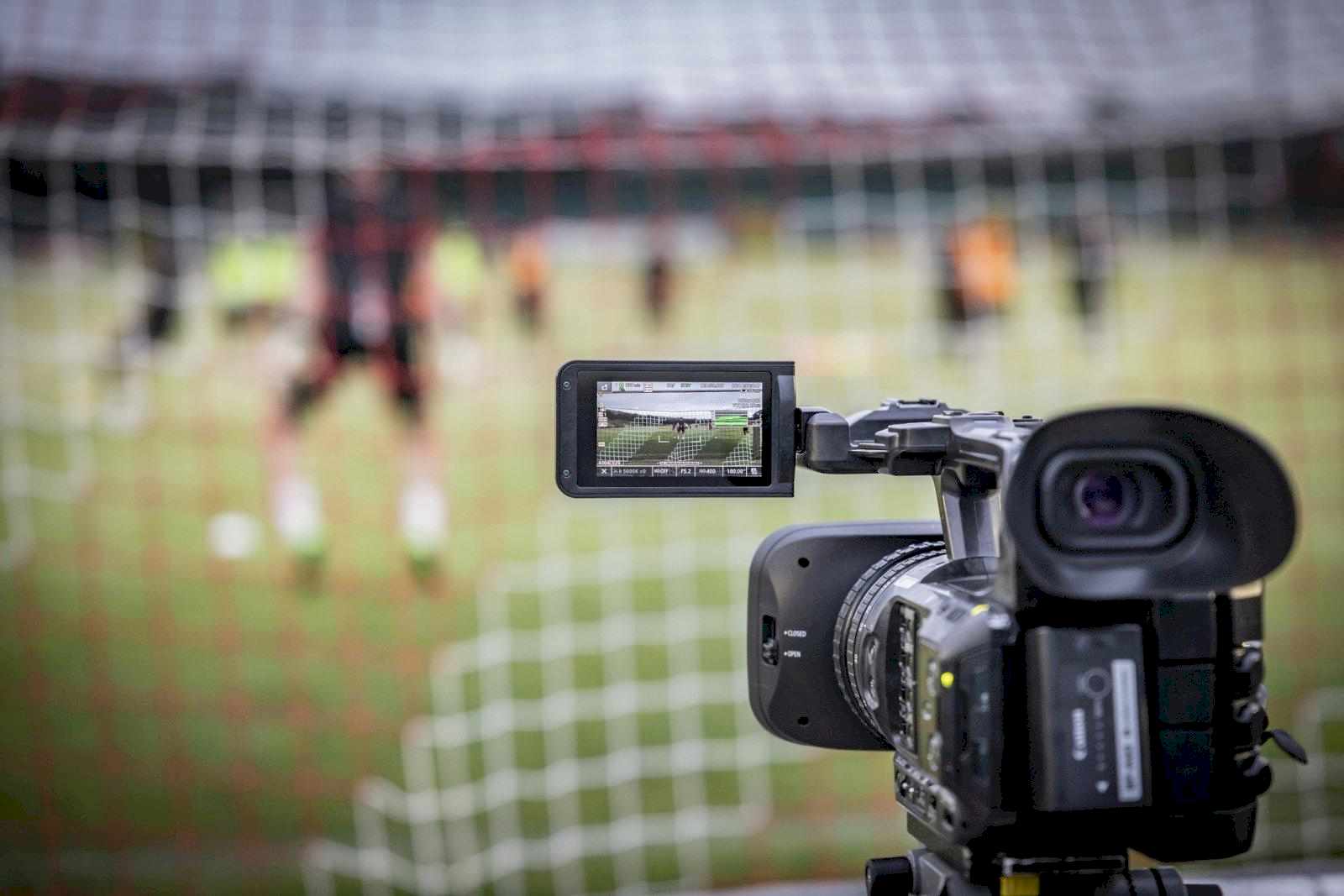

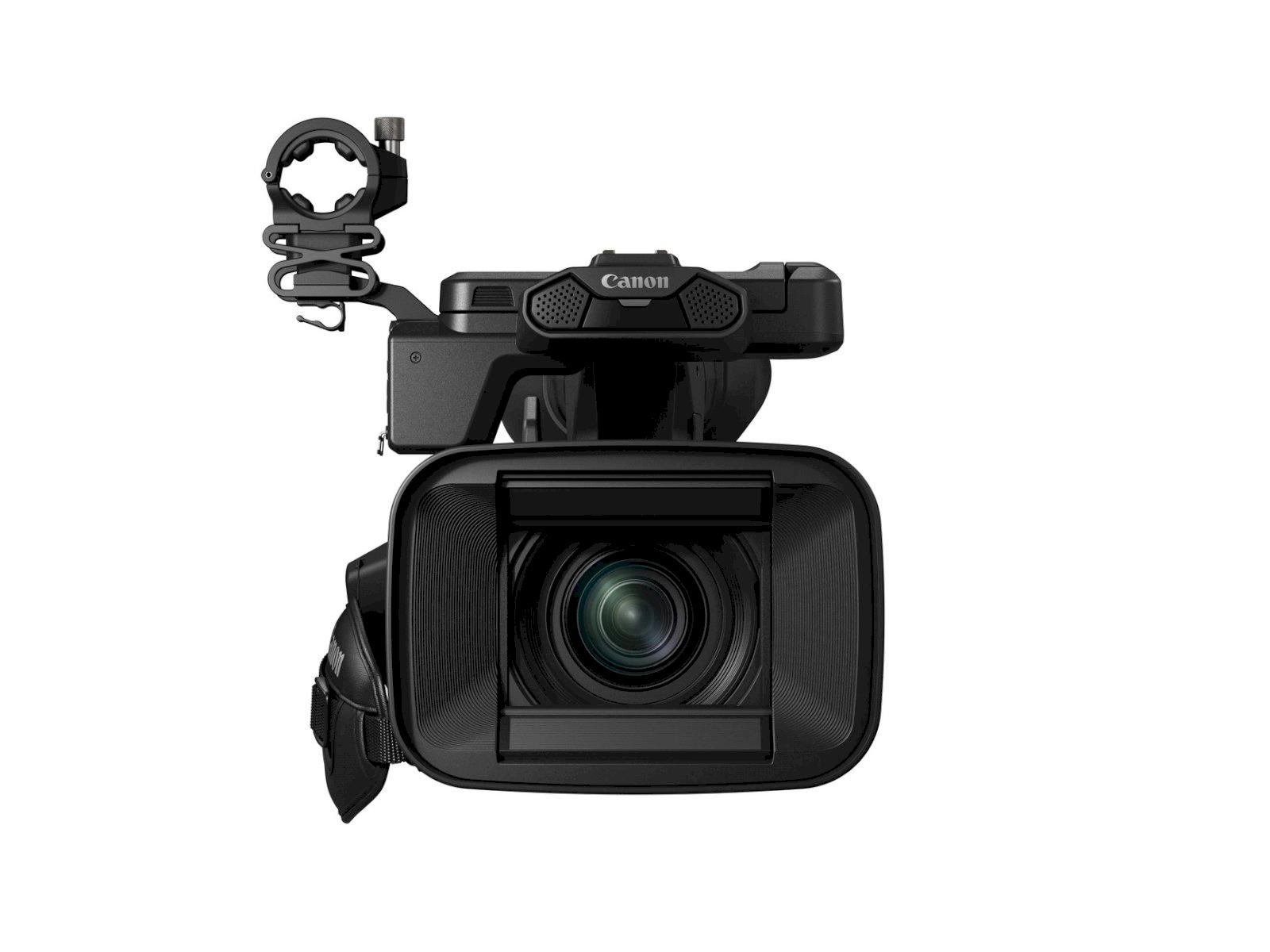

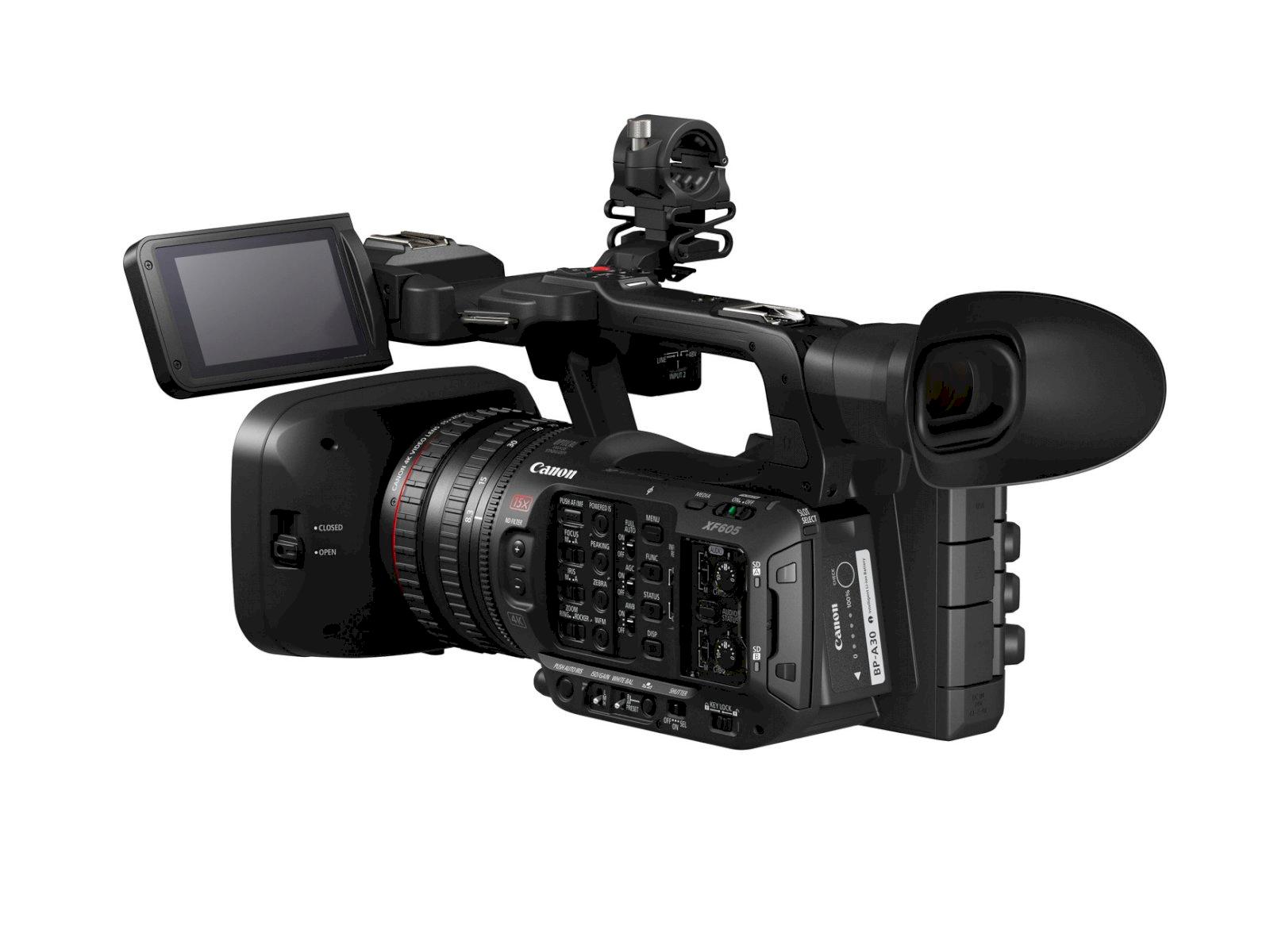

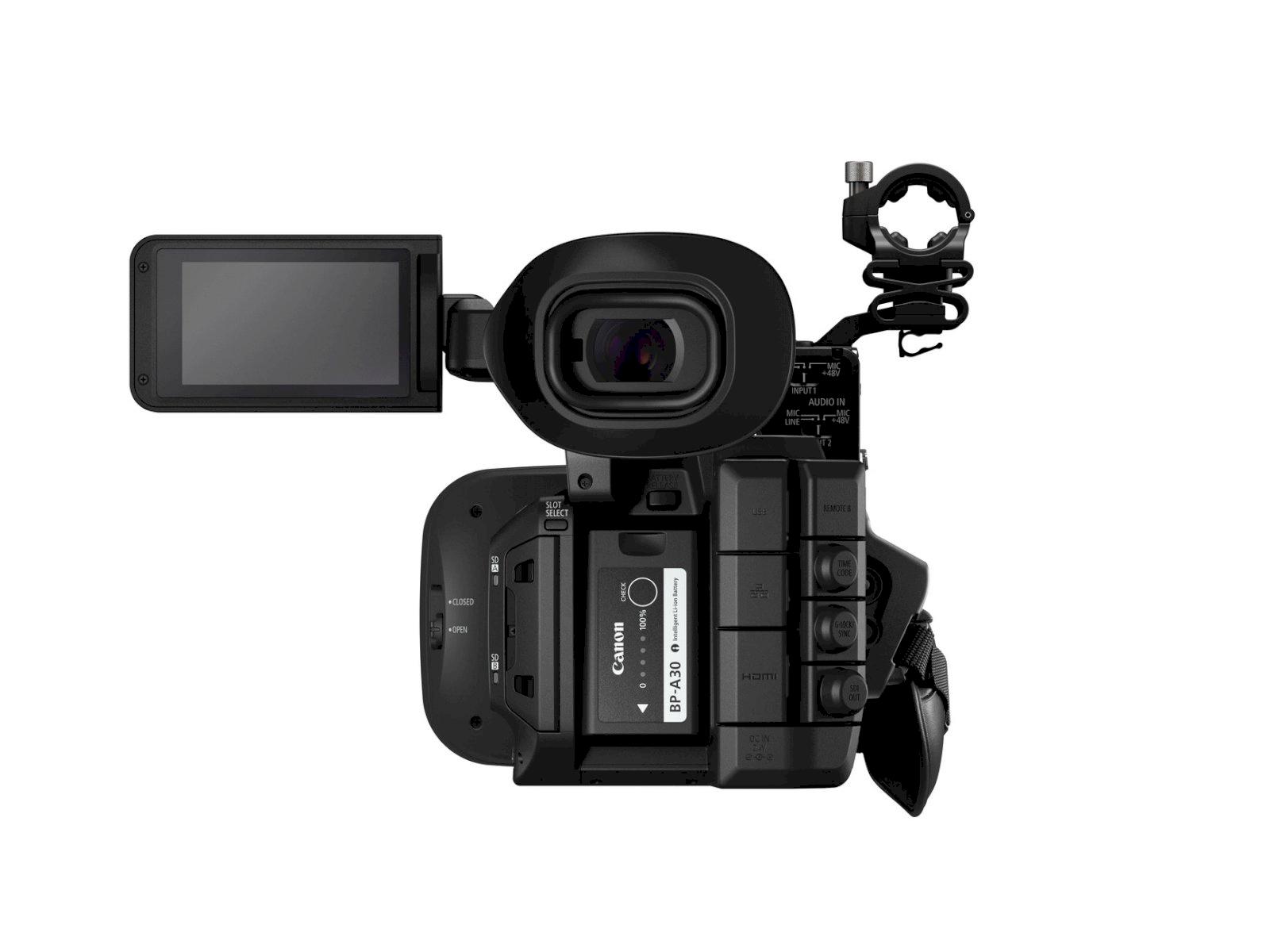

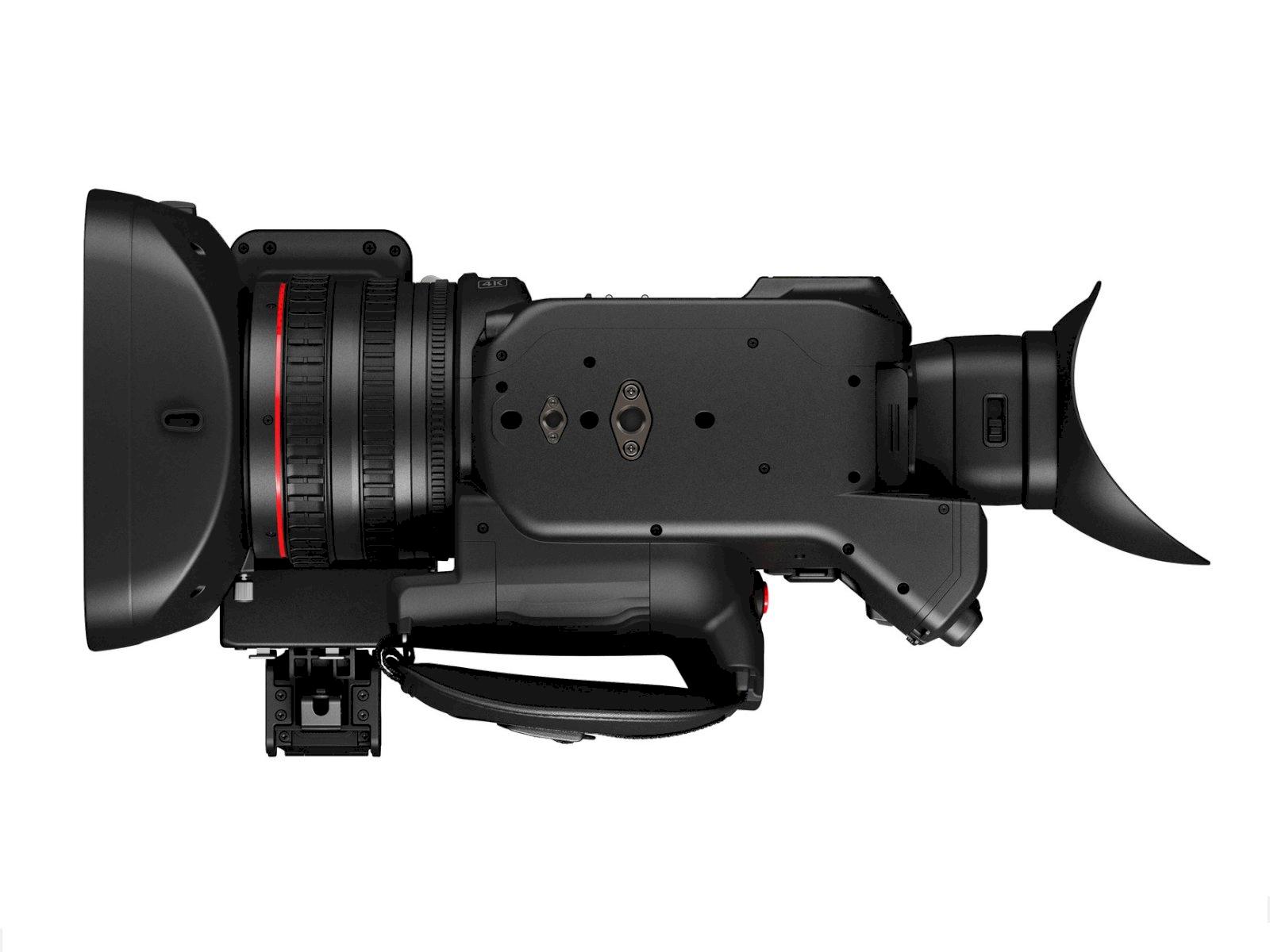

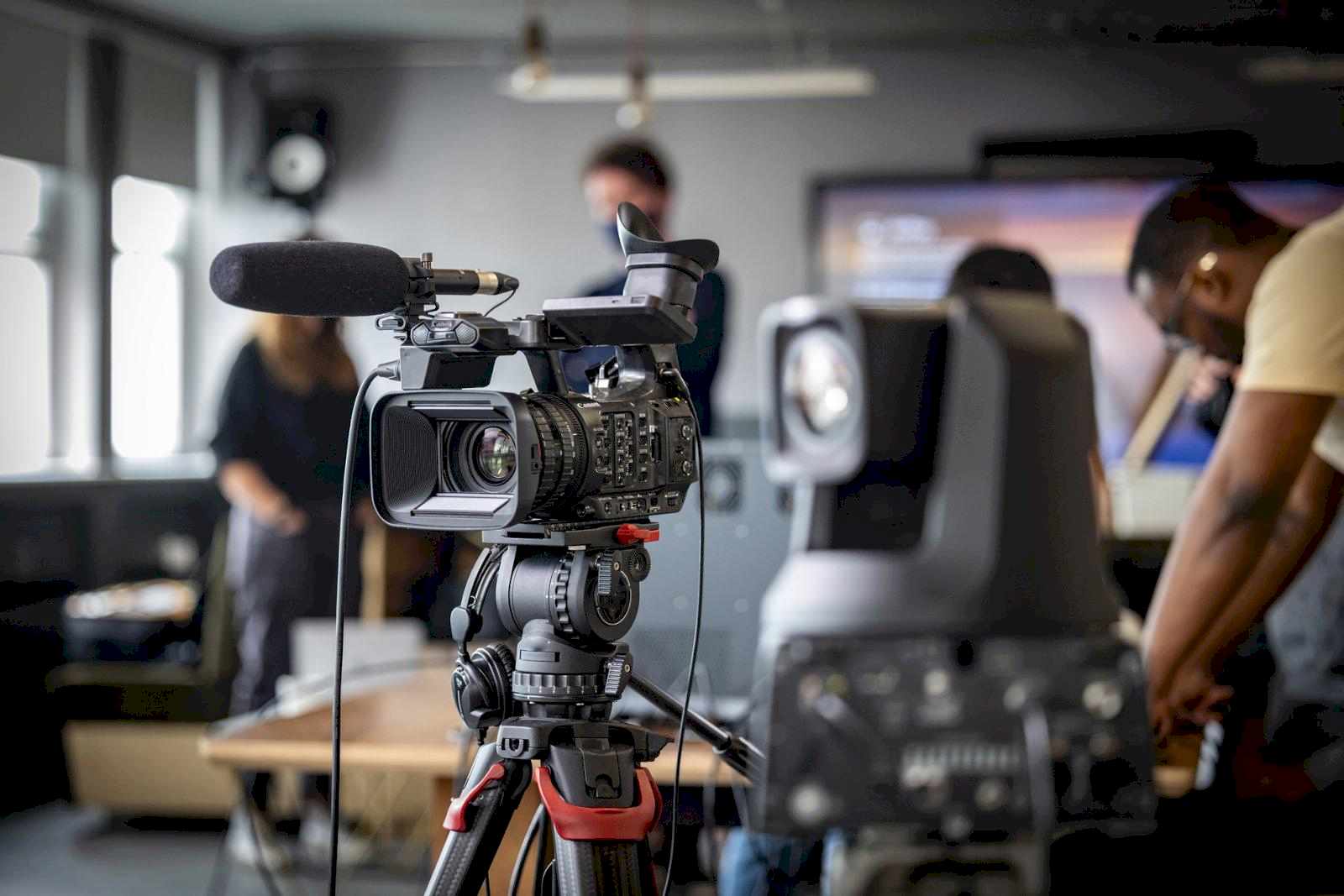

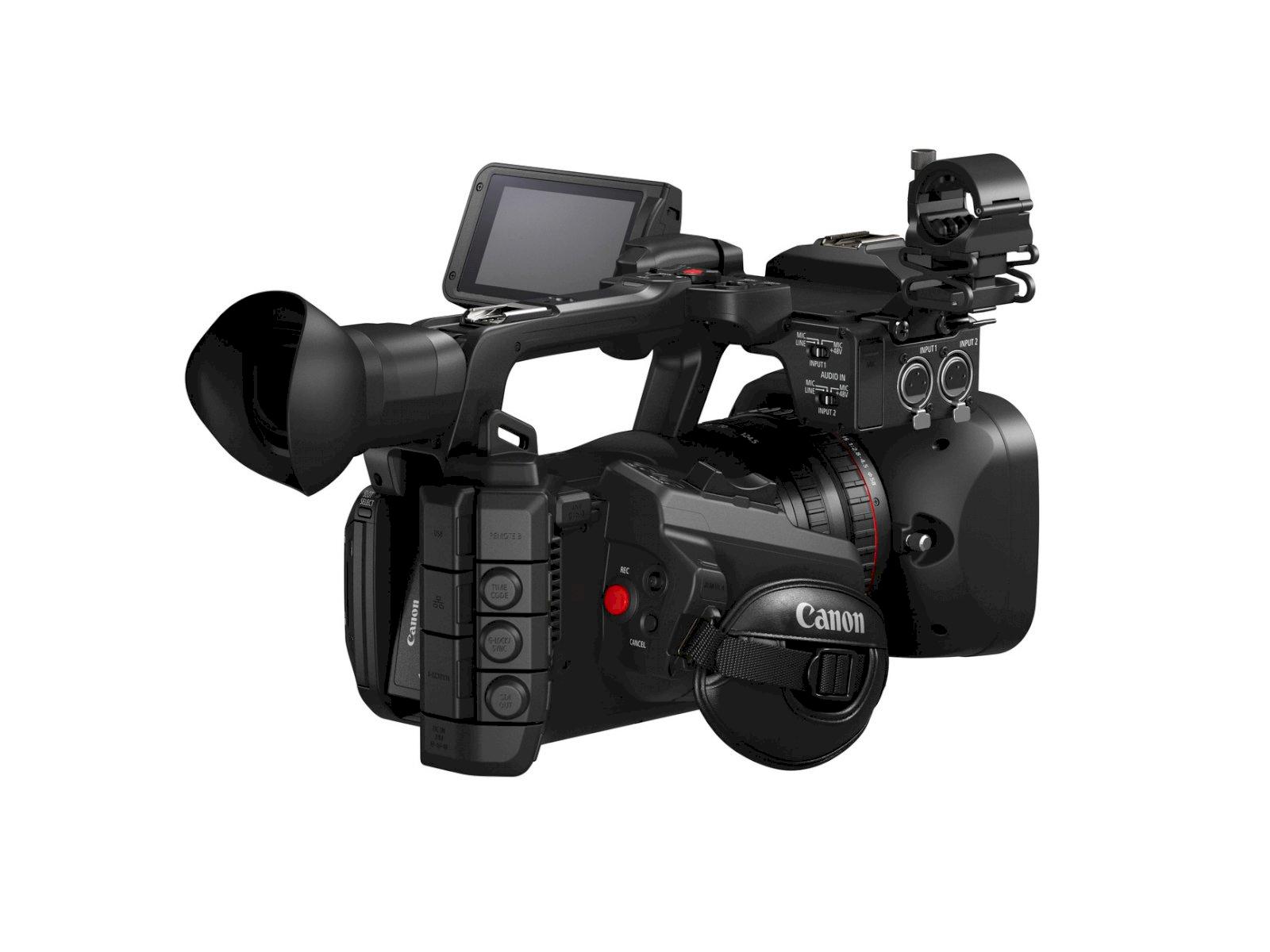

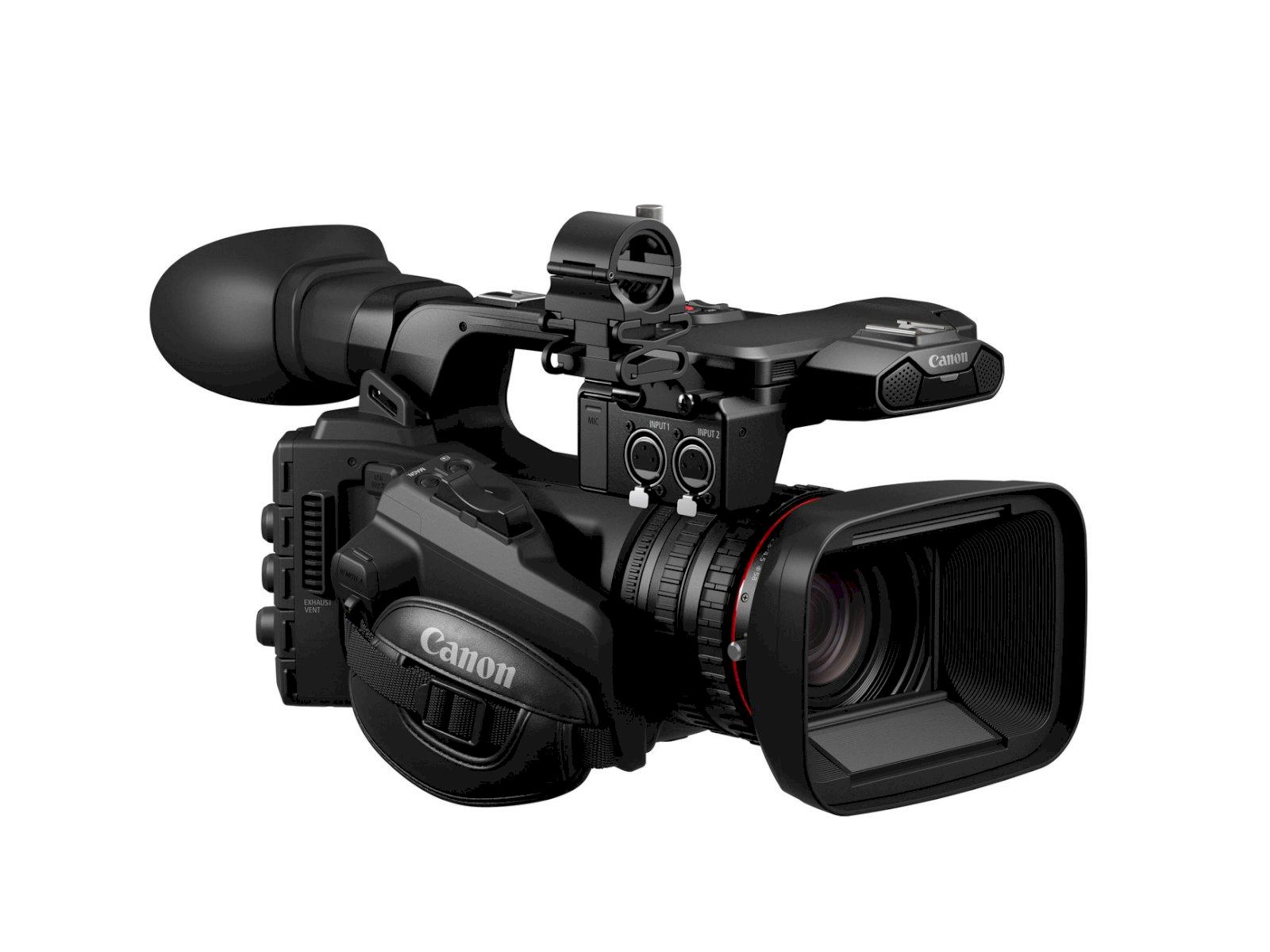

XF605

Code: 5076C003 EAN/UPC: 4549292184822






Description:

The XF605 Professional Camcorder is the next-generation XF-series camera providing excellent mobility, connectivity, and superb 4K UHD HDR image quality. Equipped with Canon’s renowned Dual Pixel CMOS AF, the XF605 achieves high-speed and high-accuracy focusing, and is the first XF-series model to include Eye Detection AF, as well as iTR AF X technology for improved face and head detection for more accurate and stable tracking of subjects.

The XF605 features a 4K L-series 15x Optical Zoom lens with 3-ring manual control. XF605 can shoot 10-bit 4:2:2 4K UHD footage in XF-AVC and MP4 formats to dual SD cards for easy post-production and quick delivery. It features multiple recording modes including Frame, Interval, and Slow and Fast motion up to 120fps in FHD.

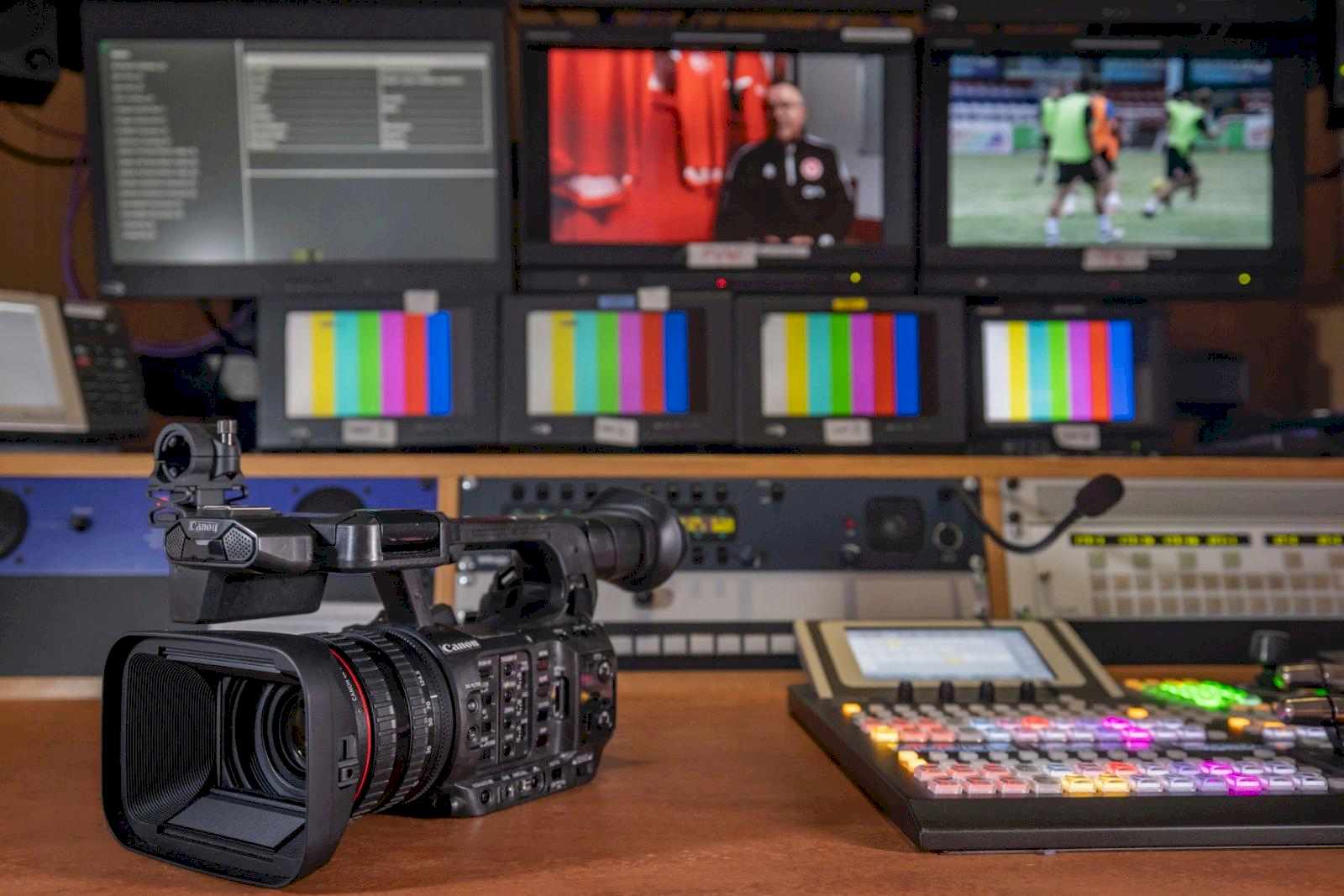

An ideal tool for news gathering, XF605 features a new CTM (Content Transfer Mobile) iPhone application which allows for proxy footage, audio, and metadata to be exchanged between a newsroom server through the phone connection in the field and integrates into newsroom assignment planning software.

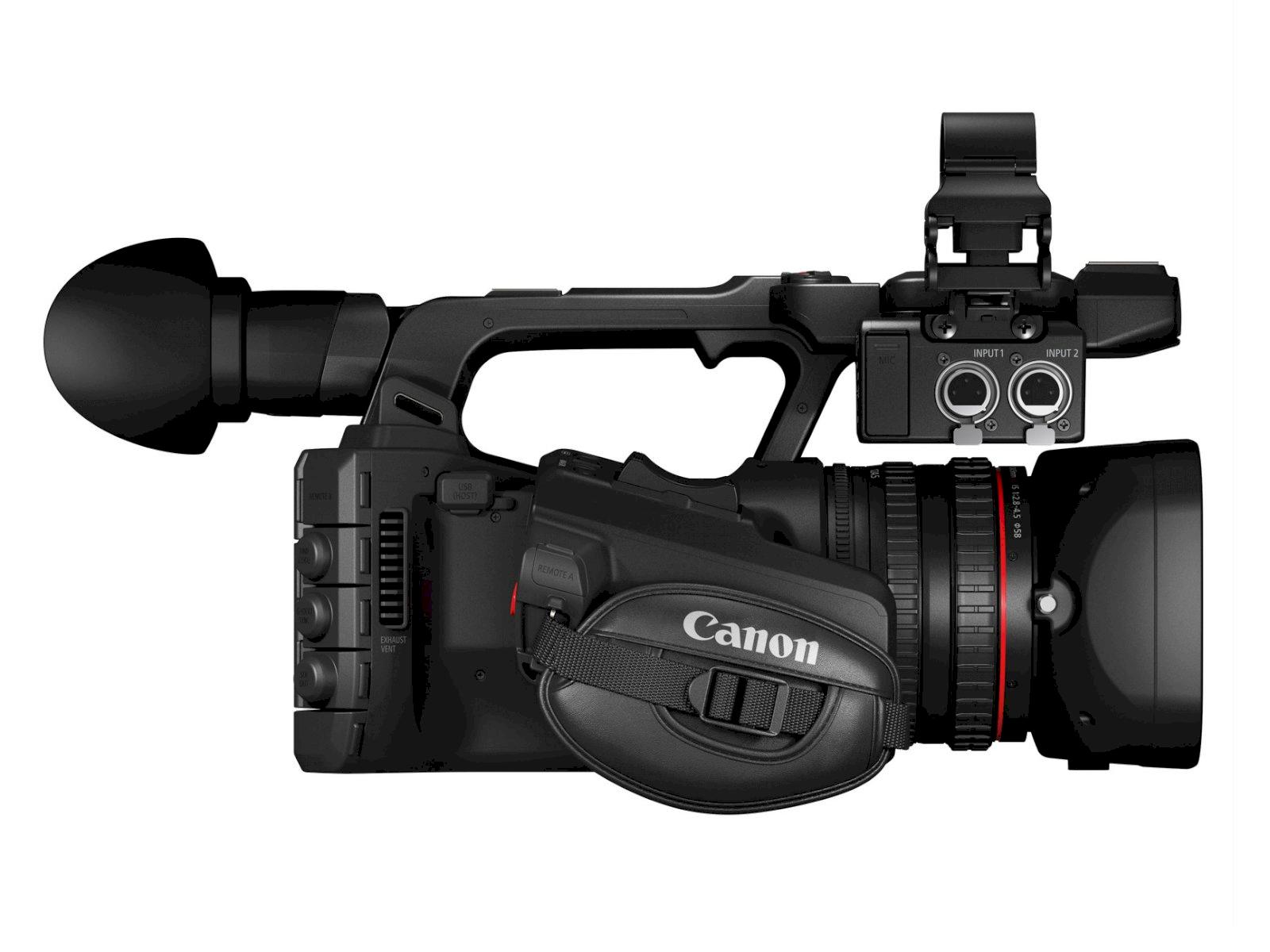

The XF605 features a Multi-Function Shoe that is compatible with a new XLR microphone adapter (developed by TEAC Corporation) for increasing the total number of XLR inputs to 4, providing a flexible audio recording workflow.

The camera features built-in Wi-Fi/Ethernet for Browser Remote, CTM (Content Transfer Mobile) app, IP streaming, and FTP transfer. The camera is also the first XF-series camera to feature USB Video Class allowing use as a webcam without the need for a 3rd Party HDMI to USB adapter. 

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • Camcorders
  • Product line:
  • 4K

Technical details

  • Number of diaphragm blades
  • 9

Weight & dimensions

  • Weight
  • 2,01 kg
  • Width
  • 168 mm
  • Depth
  • 173 mm
  • Height
  • 333 mm

Display

  • Display diagonal
  • 8.89 cm (3.5")
  • Built-in display
  • Yes
  • Display
  • LCD

Design

  • Product colour
  • Black

Ports & interfaces

  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 1
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • XLR in
  • Yes
  • Headphone outputs
  • 1
  • HDMI
  • Yes
  • Headphone connectivity
  • 3,5 mm
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • HD-SDI output
  • Yes

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -5 - 45 °C

Network

  • Bluetooth
  • No
  • Wi-Fi
  • Yes
  • Near Field Communication (NFC)
  • No
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • Ethernet LAN
  • Yes

Lens system

  • Optical zoom
  • 15x
  • Filter size
  • 5,8 cm
  • Digital zoom
  • 30x
  • Image stabilizer
  • Yes
  • Image stabilizer type
  • Optical Image Stabilization (OIS)
  • Maximum aperture number
  • 2,8
  • Focal length (35mm film equivalent)
  • 25.5 - 382.5 mm

Video

  • Maximum video resolution
  • 3840 x 2160 pixels
  • HD type
  • 4K Ultra HD
  • Maximum frame rate
  • 120 fps
  • Video formats supported
  • H.265, MP4, MPEG4, MXF
  • Pre-record
  • Yes
  • Video resolutions
  • 1280 x 720,1920 x 1080,3840 x 2160
  • Analog signal format system
  • NTSC, PAL

Storage

  • Camcorder media type
  • Memory card
  • Compatible memory cards
  • SD, SDHC, SDXC
  • Memory slots
  • 2

Battery

  • Battery life (max)
  • 2,5 h

Audio

  • Built-in microphone
  • Yes
  • Built-in speaker(s)
  • Yes
  • PCM digital audio
  • 16-bit/48 kHz

Camera

  • Minimum illumination
  • 1,5 lx
  • Camcorder type
  • Handheld camcorder
  • Image processor
  • DIGIC DV 7
  • Built-in ND filter
  • Yes
  • 3D
  • No
  • Simultaneous recording
  • Yes

Image sensor

  • Total megapixels
  • 13,4 MP
  • Sensor type
  • CMOS
  • Optical sensor size
  • 25.4 / 1 mm (1 / 1")

Focusing

  • Focus adjustment
  • Auto/Manual

Exposure

  • ISO sensitivity
  • 200, 12800, Auto
  • Gain adjustment range
  • -6 - 21 dB

White balance

  • White balance
  • Cloudy, Custom modes, Daylight, Flash, Fluorescent, Shade, Tungsten

Shutter

  • Camera shutter speed
  • 1/2000 s

Viewfinder

  • Viewfinder type
  • Optical
  • Viewfinder technology
  • OLED

Still image

  • Maximum image resolution
  • 3840 x 2160 pixels
  • Image formats supported
  • JPEG
