F17-8M

Code: 61P0J7P000AJ EAN/UPC: 4719552124114




€ 399,00 + VAT
Recommended End User Price
  • € 399,00 + VAT
  • Recommended End User Price
  •


Description:

8M, 27.2X total zoom and image streaming via HDMI visualizer (document camera)

AVerVision F17-8M is a beyond value visualizer suitable for every classroom. Its superior 8 megapixel camera delivers high definition image quality, even for the most subtle parts of items with its 27.2X zoom. Helping to inspire students’ limitless creativity through inclusive and interactive learning has never been as easy as with the F17-8M.

Exceptional 8.0 Megapixel Resolution

At 30fps, zoom in and capture engaging details with F17-8M’s powerful 8 megapixel sensor and 27.2x digital zoom which displays a large shooting area of 22.83” x 12.83”.

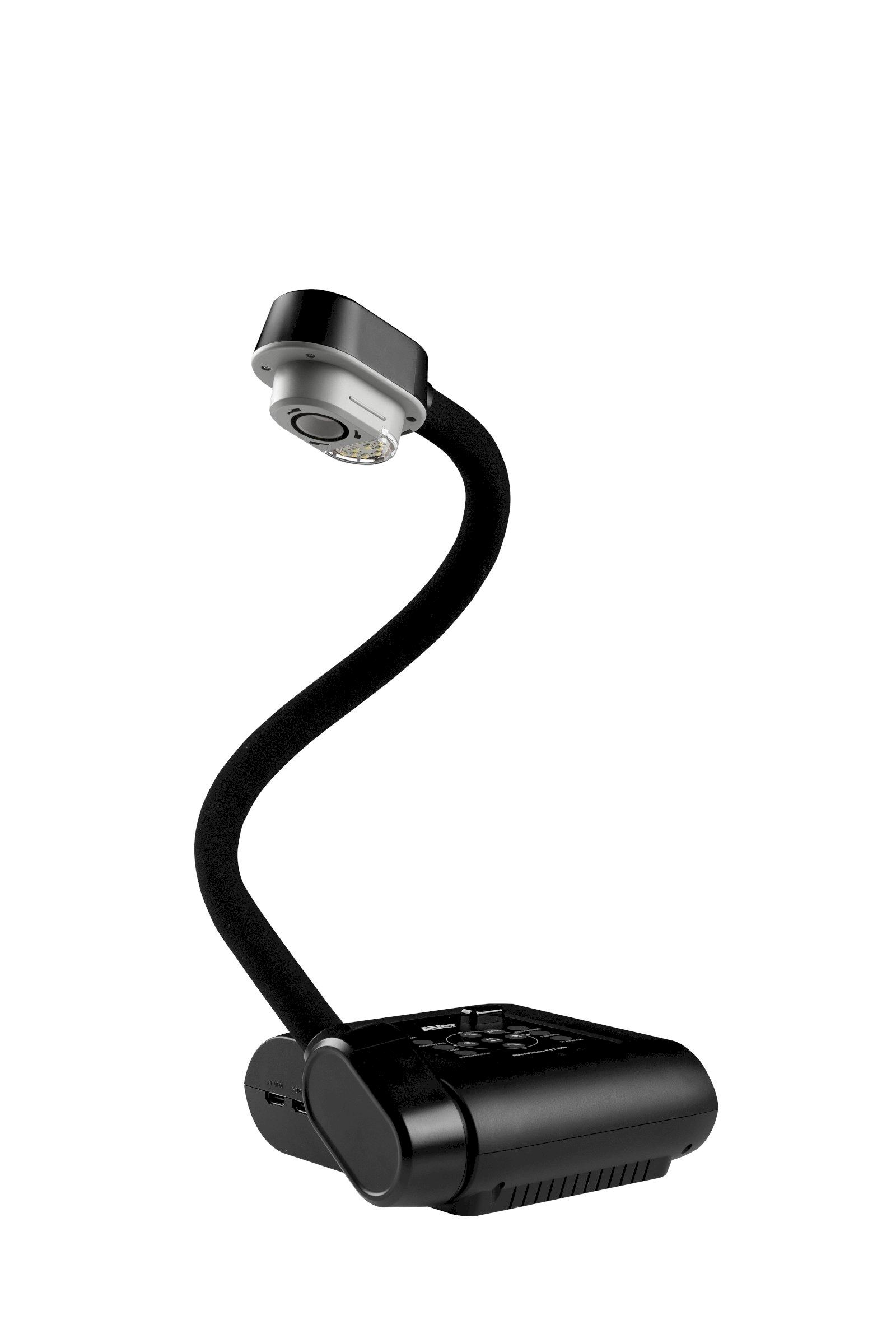

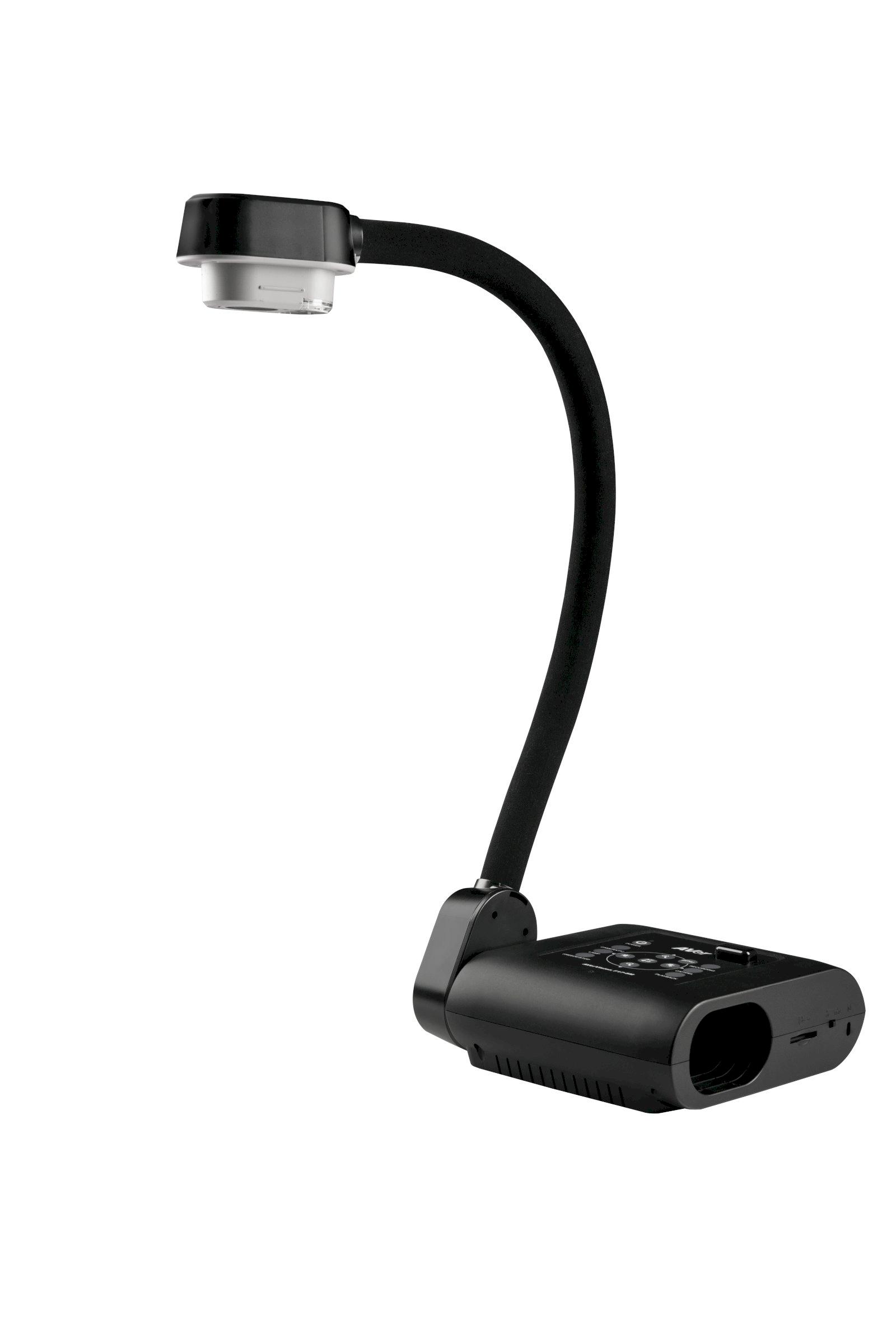

360-degree Flexible Arm

Create dynamic lessons with a flexible gooseneck that gives you a wide range of motion allowing your students to see crystal clear details from all angles.

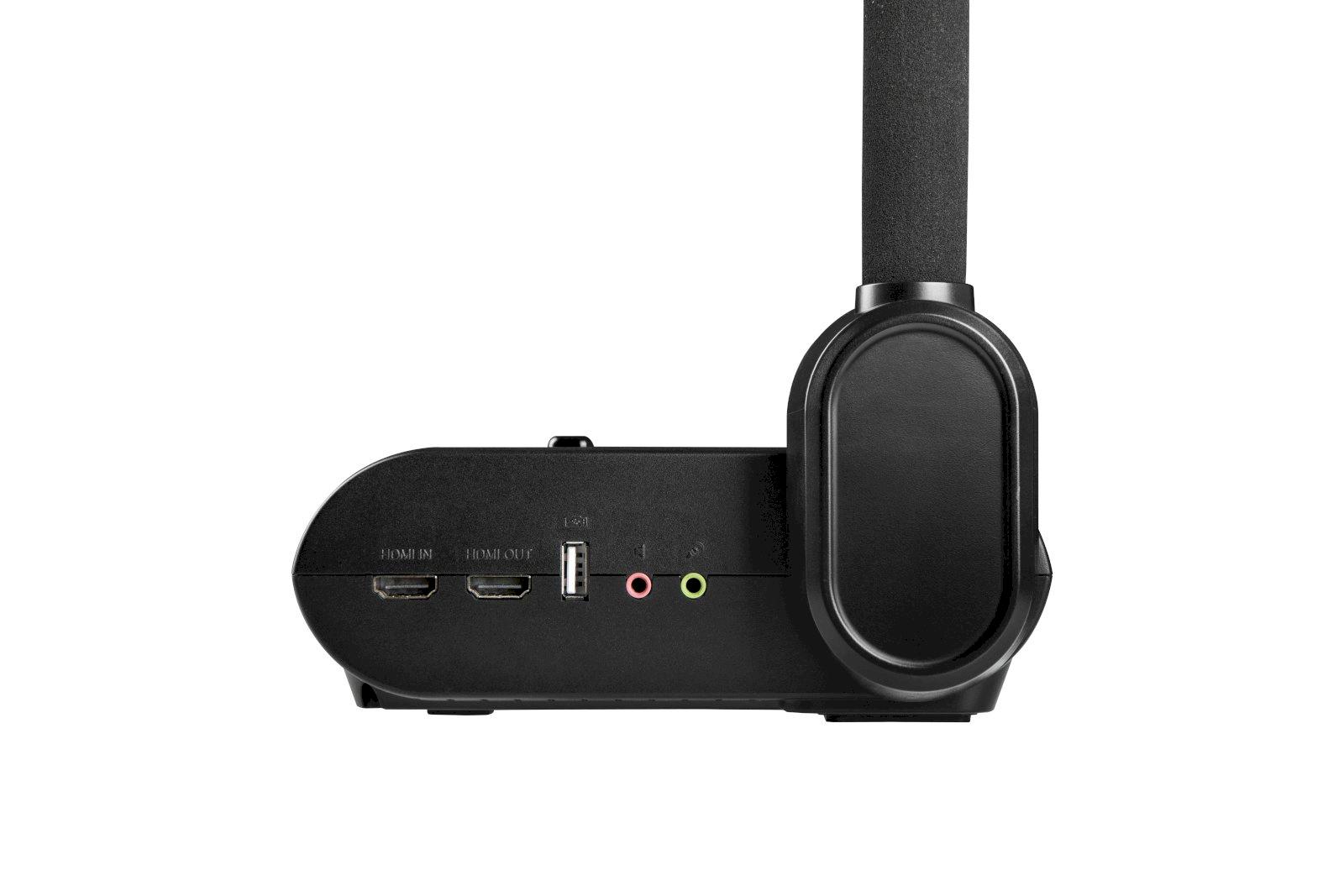

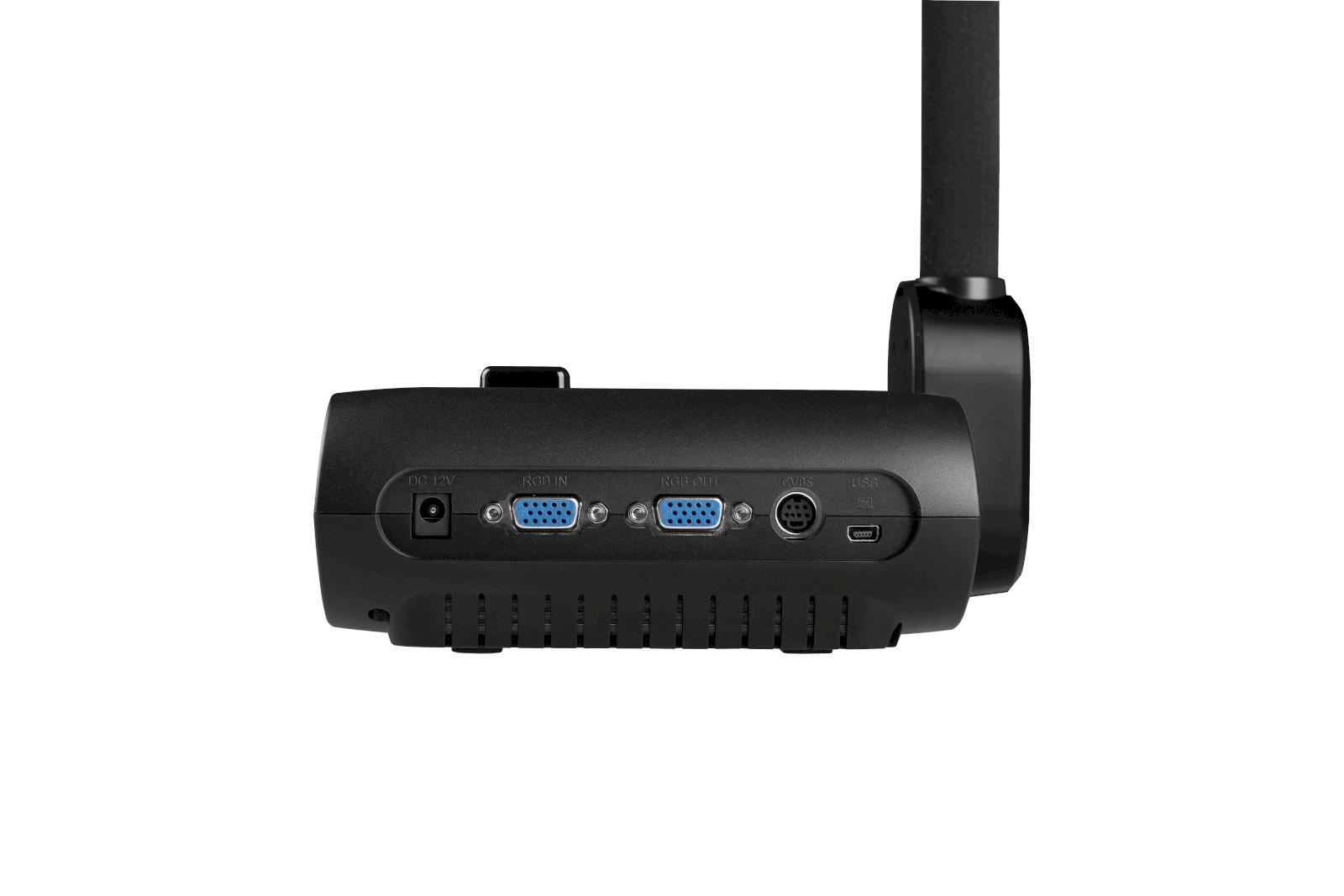

Image Streaming via HDMI and VGA Connectivity

Present and teach with exceptional HD quality with the convenience of HDMI or VGA input and output to your projector, monitor, or computer.

Create Exciting Moments with Sphere2 and ClassSend

Carry out the essence of flipped classroom – “active learning” through AVer’s exclusive Sphere2 & ClassSend Software Suite to create, collaborate, upload, and share your lesson plan materials through sites such as YouTube, Google Drive and Dropbox.

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • Document Camera
  • Product line:
  • Full Hd 1080P

Packaging data

  • Quantity per pack
  • 1 pc(s)

Technical details

  • Product colour
  • Black
  • Control type
  • Press buttons
  • Cable lock slot
  • Yes
  • Lamp type
  • LED
  • Camera movement
  • Manual
  • Photo effects
  • Black&White, Mirror, Negative film, Split screen

Weight & dimensions

  • Weight
  • 2,5 kg
  • Width
  • 200 mm
  • Depth
  • 380 mm
  • Height
  • 525 mm
  • Dimensions folded (WxDxH)
  • 230 x 305 x 73 mm

Ports & interfaces

  • Audio output
  • Yes
  • DC-in jack
  • Yes
  • USB 2.0 ports quantity
  • 2
  • USB connector type
  • Mini-USB, USB Type-A
  • Interface
  • USB 2.0
  • HDMI input ports quantity
  • 1
  • HDMI output ports quantity
  • 1
  • VGA (D-Sub) output ports
  • 1
  • Composite video out
  • 1
  • VGA (D-Sub) input ports
  • 1

Power

  • Operating voltage
  • 12 V
  • Power consumption (typical)
  • 12,8 W
  • AC input voltage
  • 100-240 V
  • AC input frequency
  • 50 - 60 Hz
  • Power supply type
  • DC

Lens system

  • Digital zoom
  • 16x
  • Auto focus
  • Yes
  • Shooting area (WxD)
  • 580 x 326 mm

Storage

  • Compatible memory cards
  • SDHC
  • Card reader integrated
  • Yes
  • Maximum memory card size
  • 32 GB
  • Memory capacity (images)
  • 80

Packaging content

  • Remote control included
  • Yes
  • AC adapter included
  • Yes
  • Cables included
  • Composite, Mini-USB, VGA
  • Warranty card
  • Yes
  • Microscope adapter included
  • Yes
  • Remote control batteries included
  • Yes
  • User guide
  • Yes

System requirements

  • Windows operating systems supported
  • Mac operating systems supported
  • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan
  • Mac compatibility
  • Yes

Camera

  • Sensor type
  • CMOS
  • Optical sensor size
  • 25.4 / 3.2 mm (1 / 3.2")
  • White balance
  • Auto, Manual
  • Light exposure modes
  • Auto, Manual
  • Effective sensor resolution
  • 8 MP
  • Supported graphics resolutions
  • 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1920 x 1080 (HD 1080)
  • Video recording
  • Yes
  • Maximum video resolution
  • 1920 x 1080 pixels
  • HD type
  • Full HD
  • Maximum frame rate
  • 30 fps
  • Image freeze
  • Yes
