PTZ310

Code: 61S3100000AK EAN/UPC: 4719552124954




€ 1.699,00 + VAT
Recommended End User Price
  • € 1.699,00 + VAT
  • Recommended End User Price
  •


Description:

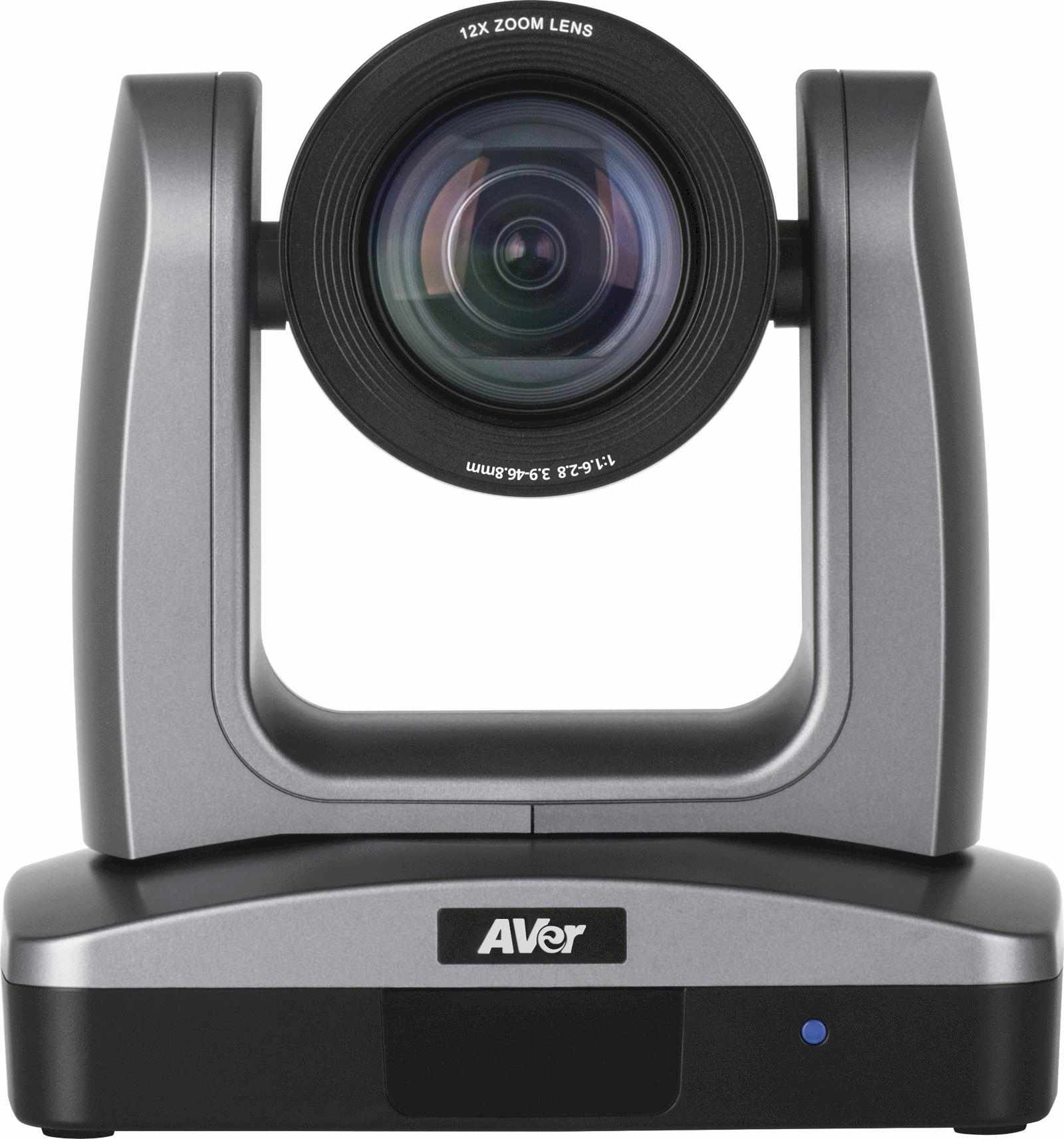

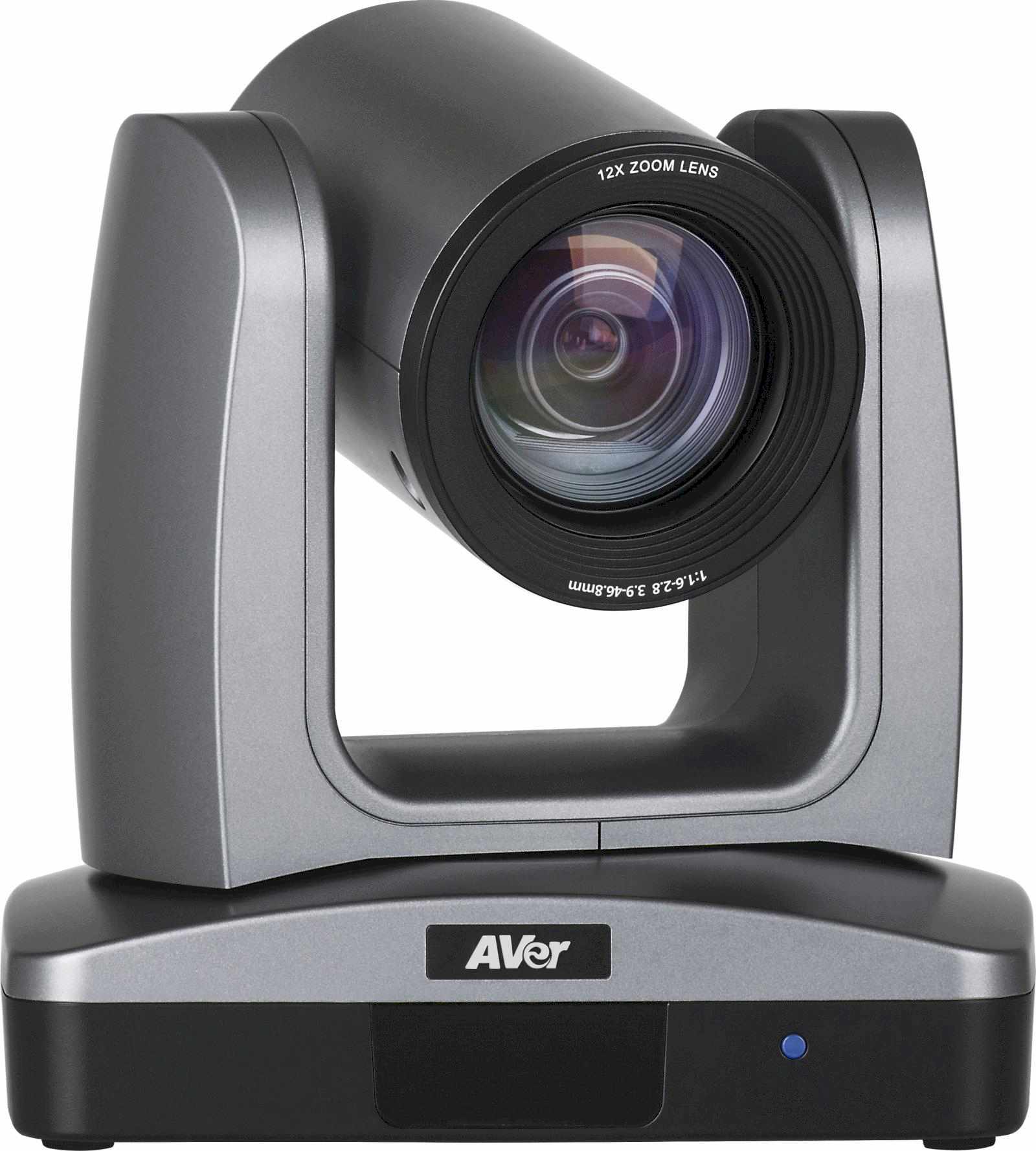

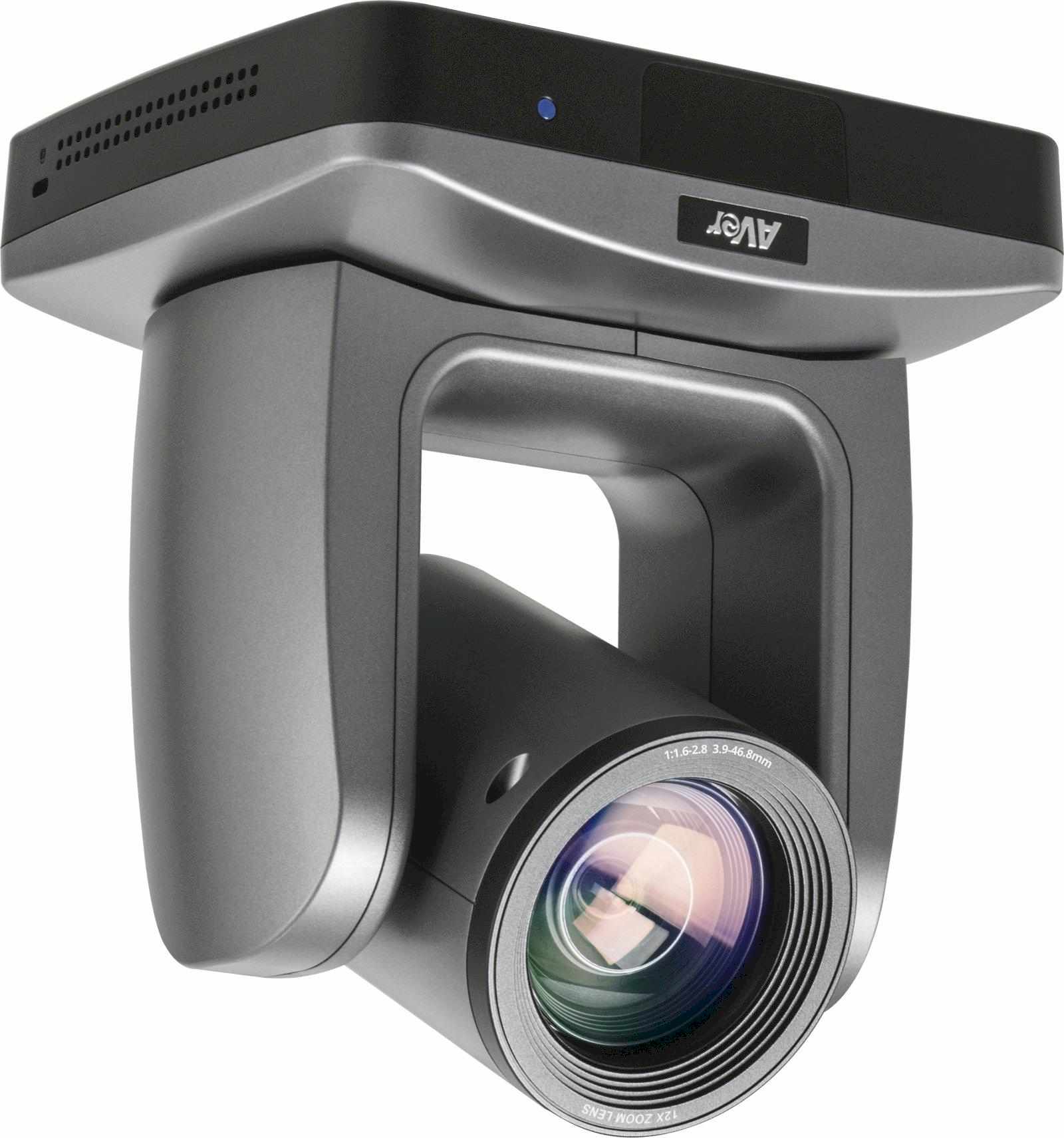

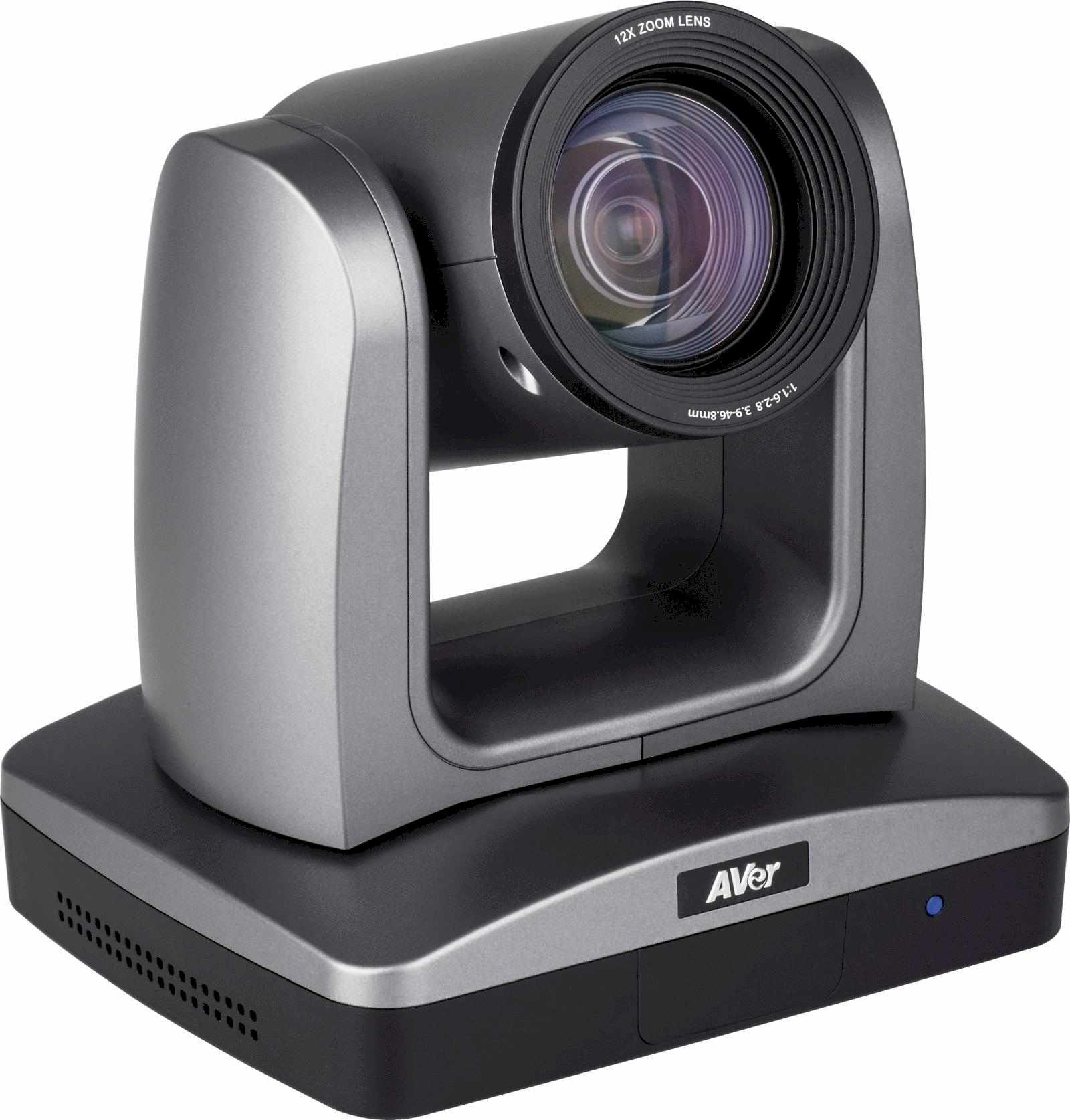

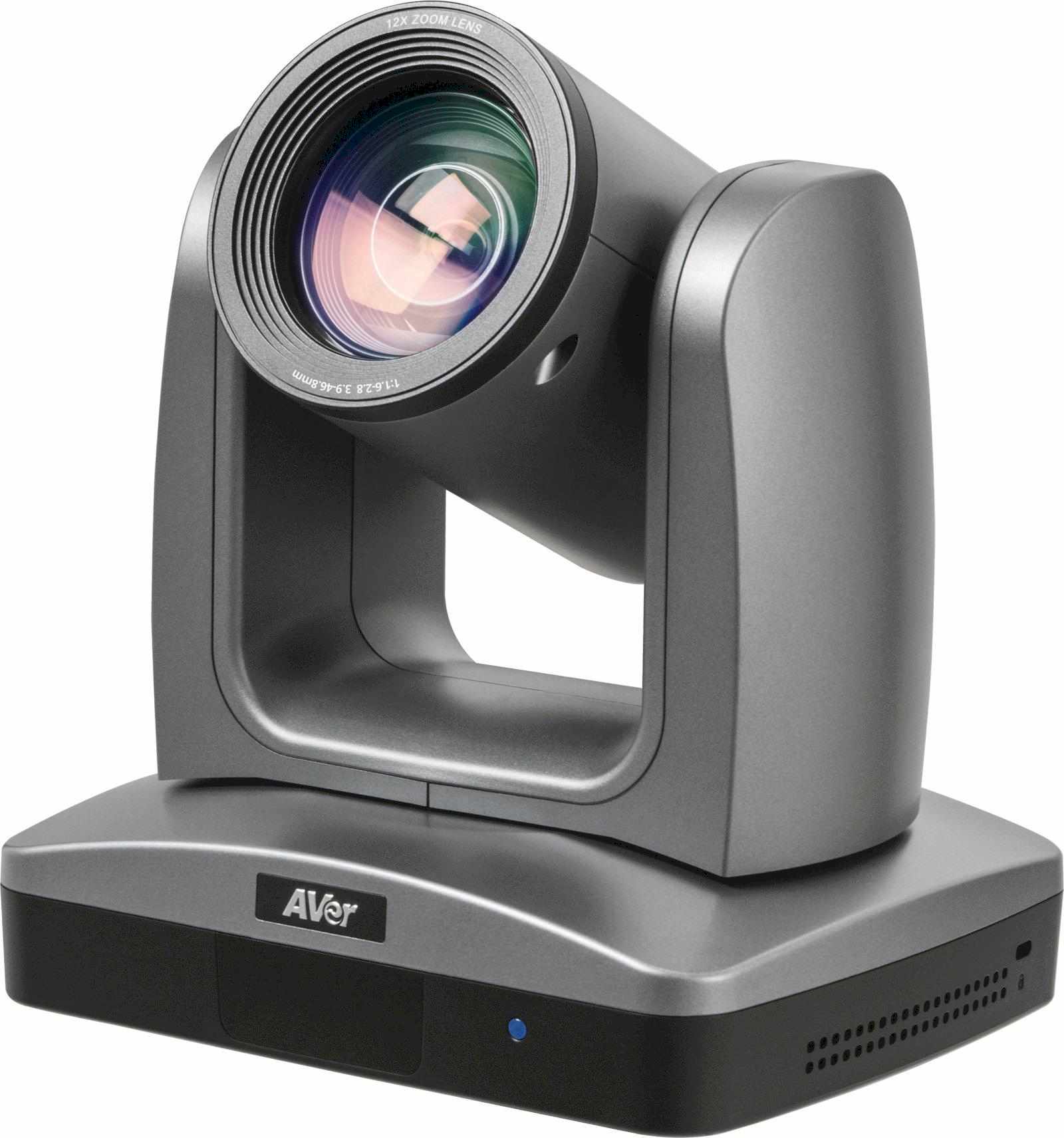

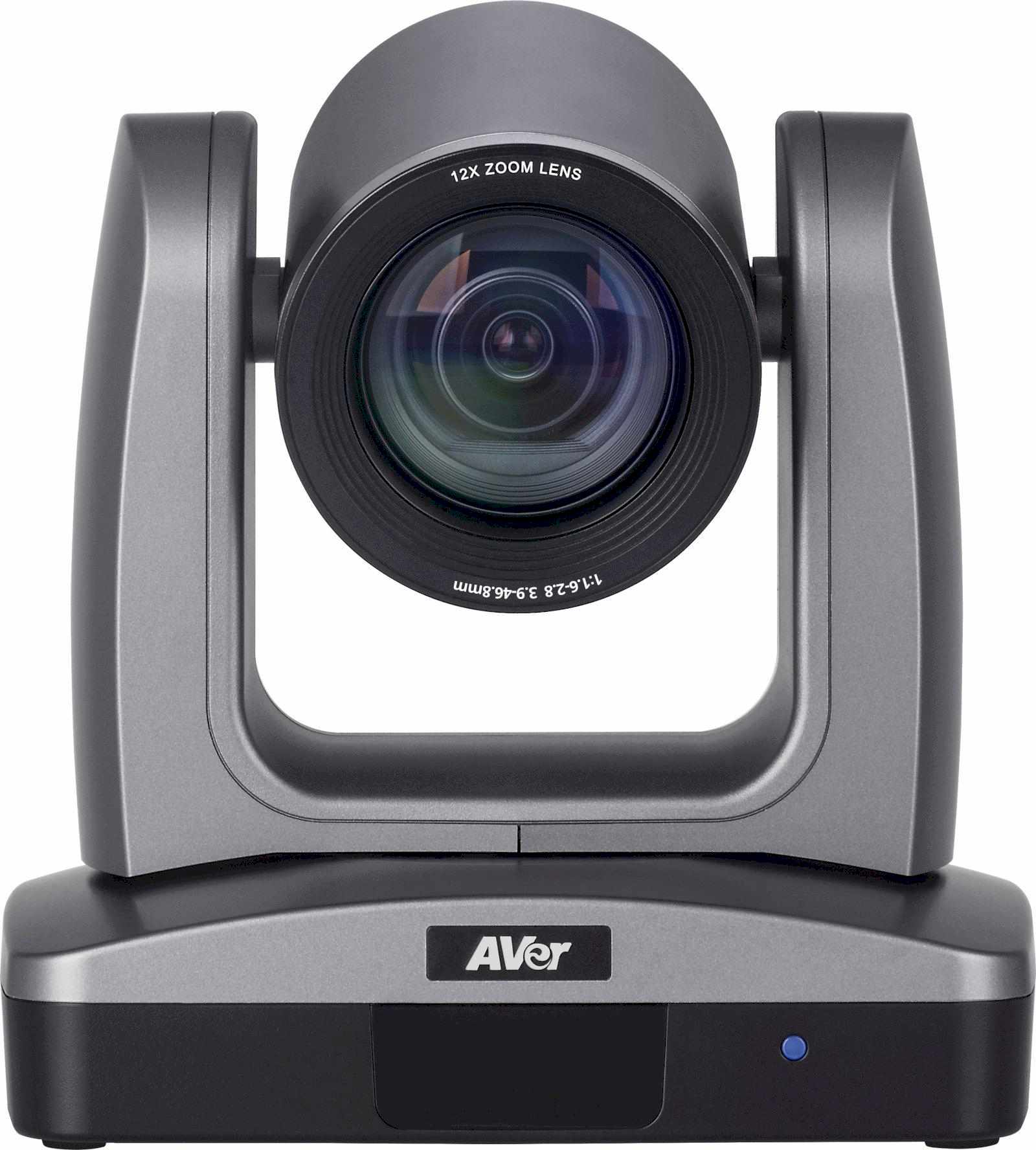

Professional PTZ Camera

AVer PTZ330 is available in white or grey and equipped versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, the PTZ330 makes you feel the action in a scene!

30X Optical Zoom

Resounding image quality and a 30X optical zoom enable you to capture crystal-clear footage in any classroom, hall, or activity center.

Full HD Resolution

The PTZ330 provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance.

Up to 255 Preset Locations

Always be prepared to capture every angle and change the recording view at a moment’s notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.

Stable Motion Control

Fully optimize your recording with customizable speed settings from 0.1°to 200° per second that maximize the agility and precision of pan/tilt rotation motion control.

Seamless Tracking Between Your Preset Zones

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ330 across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.

Fit Your FOV in Seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • PTZ Indoor
  • Product line:
  • Full Hd 1080P

Weight & dimensions

  • Weight
  • 1,74 kg
  • Width
  • 145 mm
  • Depth
  • 180 mm
  • Height
  • 183,5 mm

Performance

  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington

Design

  • Product colour
  • Grey
  • Tilt angle range
  • -30 - 90°
  • Pan range
  • 170 - 170°
  • Country of origin
  • Taiwan
  • Tilt speed (min)
  • 0.1 °/sec
  • Tilt speed (max)
  • 100 °/sec
  • Pan speed (min)
  • 0.1 °/sec
  • Pan speed (max)
  • 100 °/sec

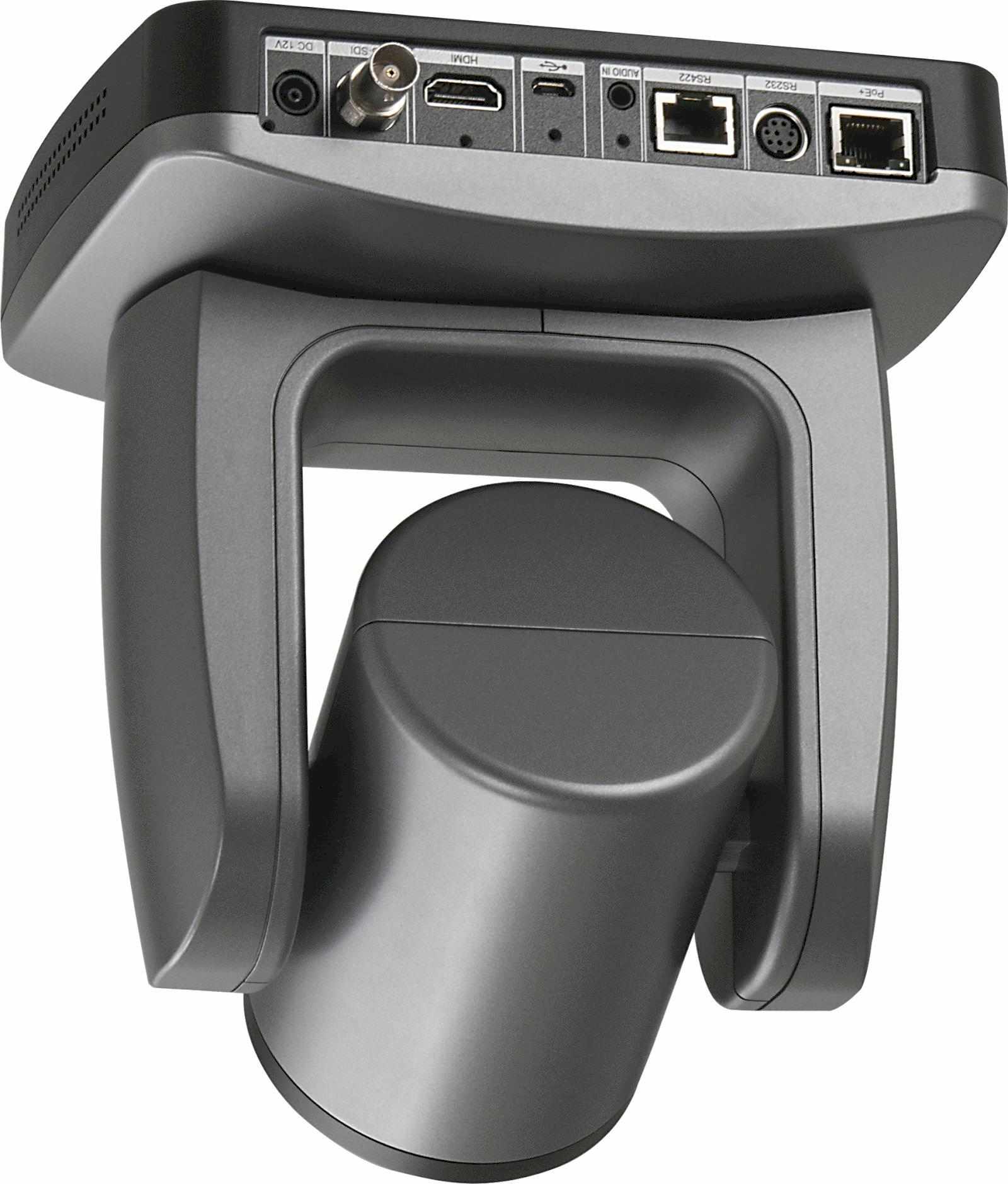

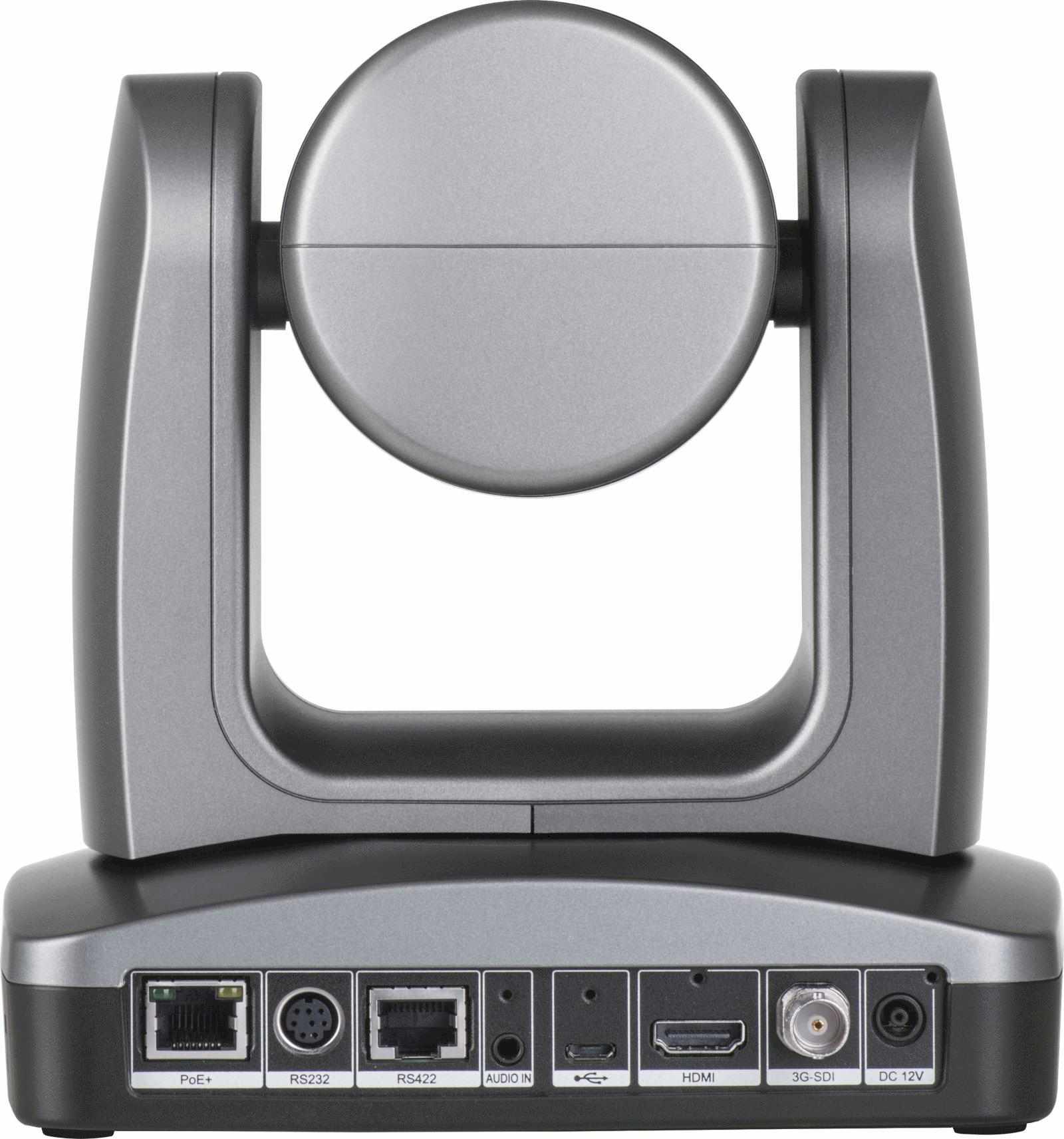

Ports & interfaces

  • HDMI ports quantity
  • 1
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Microphone in
  • Yes
  • RS-422 ports
  • 1
  • 3G-SDI output
  • Yes

Power

  • Power source type
  • AC, PoE

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Storage relative humidity (H-H)
  • 20 - 95%

Network

  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Network streaming
  • Yes
  • Supported network protocols
  • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA IP
  • Networking standards
  • IEEE 802.3at

Video

  • Supported video modes
  • 720p, 1080i, 1080p
  • Maximum video resolution
  • 1920 x 1080 pixels
  • HD type
  • Full HD
  • Maximum frame rate
  • 60 fps
  • Resolution at capture speed
  • 1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps
  • Video formats supported
  • H.264, M-JPEG, YUV

Logistics data

  • Harmonized System (HS) code
  • 8525890000

Camera

  • Number of camera presets
  • 10
  • Megapixel (approx.)
  • 2,1 MP
  • Sensor type
  • CMOS
  • Optical sensor size
  • 25.4 / 2.8 mm (1 / 2.8")
  • Optical zoom
  • 12x
  • Digital zoom
  • 12x
  • Focal length range
  • 3.9 - 46.8 mm
  • Minimum illumination
  • 0,4 lx
  • Signal-to-Noise Ratio (SNR)
  • 50 dB
  • Aperture range (F-F)
  • 1.6 - 2.8
  • PTZ control
  • Yes
  • 3D NR (Noise Reduction)
  • Yes
  • Horizontal field of view (wide)
  • 72.5°
  • Horizontal field of view (tele)
  • 6.3°
  • White balance
  • Auto, Indoor, Manual, One push, Outdoor
  • Gain control type
  • Auto/Manual
  • Slowest camera shutter speed
  • 1 s
  • Fastest camera shutter speed
  • 1/3200 s
  • Auto exposure
  • Yes
  • Minimum working distance (wide)
  • 30 cm
  • Maximum working distance (tele)
  • 150 cm
