PTC310U 4K Auto-tracking ,12X, HDMI, RJ45, 3G-SDI

Code: 61S9100000AD EAN/UPC: 4719552126057




€ 2.699,00 + VAT
Recommended End User Price
  • € 2.699,00 + VAT
  • Recommended End User Price
  •


Description:

PRECISION MATTERS

The PTC310U AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310U features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combine the 12XOptical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!

4K Output Resolution

Equipped with 4K resolution, the PTC310U provides ultra-precise auto tracking. The PTC310U also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

12X Optical Zoom

The zoom power of the PTC310U camera reaches an incredible 24X (including 2X Sensor Zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shootingangles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310U.

Human Detection AI

Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables PTC310U to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

Redirect focus in an instant with the PTC310U. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four content zones to steadily capture the content on display rather than the presenter’s movements.

  • DATA SHEET
  • COMPATIBLE ACCESSORIES
  • SIMILAR ARTICLES
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • Installation
  • Product line:
  • Auto-Tracking

Weight & dimensions

  • Weight
  • 1,7 kg
  • Width
  • 180 mm
  • Depth
  • 145 mm
  • Height
  • 183,5 mm

Performance

  • Remote control function
  • Y
  • Cable lock slot
  • Y
  • Cable lock slot type
  • Kensington
  • Screen mirroring
  • Y

Design

  • Product colour
  • Black
  • Tilt angle range
  • -30 - 90°
  • Pan range
  • 170 - 170°
  • Web-based management
  • Y
  • Tilt speed (min)
  • 0.1 °/sec
  • Tilt speed (max)
  • 100 °/sec
  • Pan speed (min)
  • 0.1 °/sec
  • Pan speed (max)
  • 100 °/sec

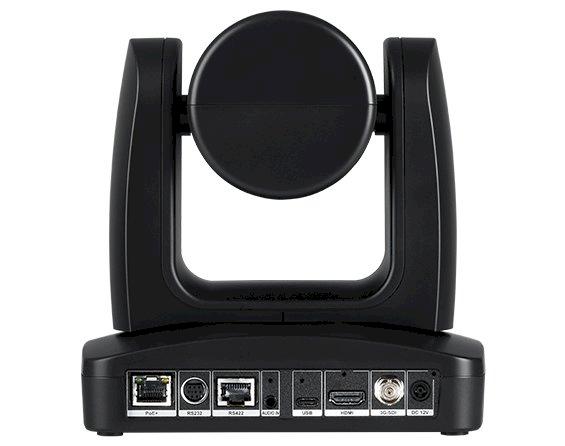

Ports & interfaces

  • DC-in jack
  • Y
  • HDMI ports quantity
  • 1
  • RS-232 ports
  • 1
  • Microphone in
  • Y
  • USB Type-C connector
  • Y
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • Power over Ethernet plus (PoE+) ports quantity
  • 1
  • RS-422 ports
  • 1
  • 3G-SDI output
  • Y

Power

  • Input current
  • 5 A
  • DC input voltage
  • 12 V
  • Power source type
  • AC, PoE

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • 20 - 80 °C
  • Operating relative humidity (H-H)
  • -20 - 60%
  • Storage relative humidity (H-H)
  • 20 - 95%

Network

  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Network streaming
  • Y
  • Supported network protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

Video

  • Supported video modes
  • 720p,1080i,1080p,2160p
  • HD type
  • 4K Ultra HD
  • Maximum frame rate
  • 30 fps
  • Resolution at capture speed
  • 1280x720@50fps,1280x720@60fps,1920x1080@25fps,1920x1080@29.97fps,1920x1080@30fps,1920x1080@50fps,1920x1080@59.94fps,1920x1080@60fps,3840x2160@25fps,3840x2160@29.97fps,3840x2160@30fps
  • Video formats supported
  • H.264,H.265

Audio

  • Noise reduction
  • Y

System requirements

  • Windows operating systems supported
  • Windows 10,Windows 7,Windows 8,Windows 8.1

Camera

  • Megapixel
  • 8 MP
  • Sensor type
  • CMOS
  • Optical sensor size
  • 25.4 / 2.8 mm (1 / 2.8")
  • Optical zoom
  • 12x
  • Digital zoom
  • 12x
  • Focal length range
  • 3.9 - 46.8 mm
  • Minimum illumination
  • 0,4 lx
  • Signal-to-Noise Ratio (SNR)
  • 50 dB
  • Aperture range (F-F)
  • 1.6 - 2.8
  • PTZ control
  • Y
  • 3D NR (Noise Reduction)
  • Y
  • White balance
  • Auto, Manual
  • Horizontal field of view (wide)
  • 70°
  • Horizontal field of view (tele)
  • Auto exposure
  • Y
  • Gain control type
  • Auto/Manual
  • Minimum working distance (wide)
  • 30 cm
  • Maximum working distance (tele)
  • 150 cm
  • Fastest camera shutter speed
  • 1/3200 s
