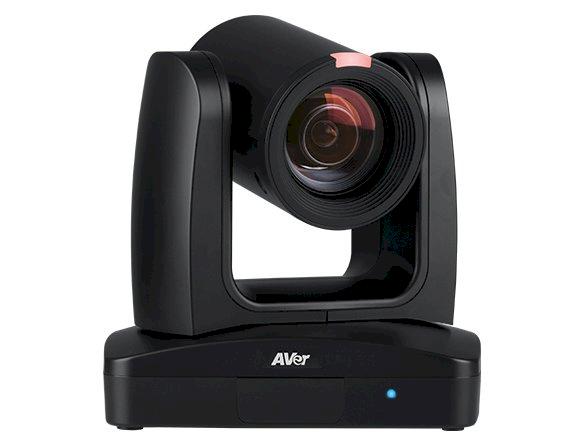

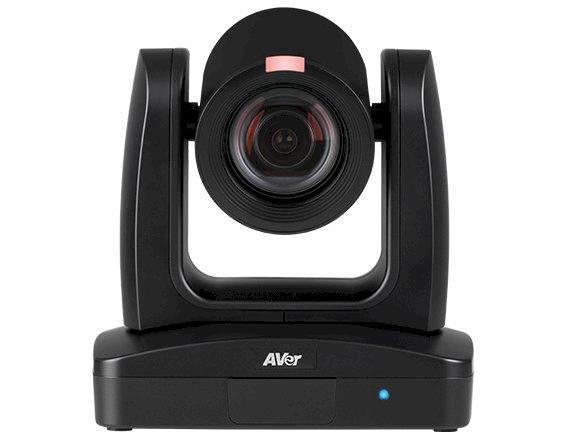

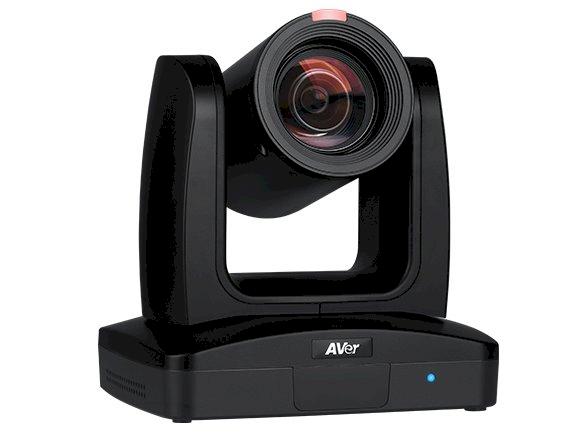

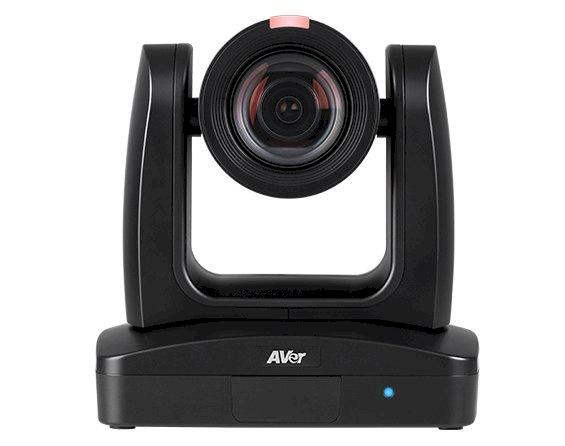

PTC310H

Code: 61S9100000AG EAN/UPC: 4719552126316




€ 2.399,00 + VAT
Recommended End User Price
  • € 2.399,00 + VAT
  • Recommended End User Price
  •


Description:

TRACK EVERY MOMENT

The PTC310H AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310H features in-house AI functions like Presenter Mode and Zone Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!

4K Output Resolution

Equipped with 4K resolution, the PTC310H provides ultra-precise auto tracking. The PTC310H also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.

12X Optical Zoom & 2X Sensor Zoom

The zoom power of the PTC310H reaches an incredible 24X (12X optical and 2X sensor zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310H.

Human Detection AI

Welcome AVer’ s most advanced AI tool yet—Human Detection. This highly accurate processing function enables the PTC310H to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.

Click & Track

Redirect focus in an instant with the PTC310H. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via both remote control and intuitive Web UI.

Presenter Mode

Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.

Zone Mode

Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.

  • DATA SHEET
  • COMPATIBLE ACCESSORIES
  • SIMILAR ARTICLES
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • PTZ Indoor
  • Product line:
  • 4K

Weight & dimensions

  • Weight
  • 1,7 kg
  • Width
  • 180 mm
  • Depth
  • 145 mm
  • Height
  • 183,5 mm

Performance

  • Remote control function
  • Yes
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Live video preview
  • Yes
  • Remote control type
  • IR
  • Screen mirroring
  • Yes
  • Auto-tracking
  • Yes
  • Tracking modes
  • Presenter mode, Zone mode

Design

  • Product colour
  • Black
  • Tilt angle range
  • -30 - 90°
  • Pan range
  • 170 - 170°
  • Tilt preset speed
  • 200 °/sec
  • Pan preset speed
  • 200 °/sec
  • Tally light
  • Yes
  • Web-based management
  • Yes
  • Tilt speed (min)
  • 0.1 °/sec
  • Tilt speed (max)
  • 100 °/sec
  • Pan speed (min)
  • 0.1 °/sec
  • Pan speed (max)
  • 100 °/sec

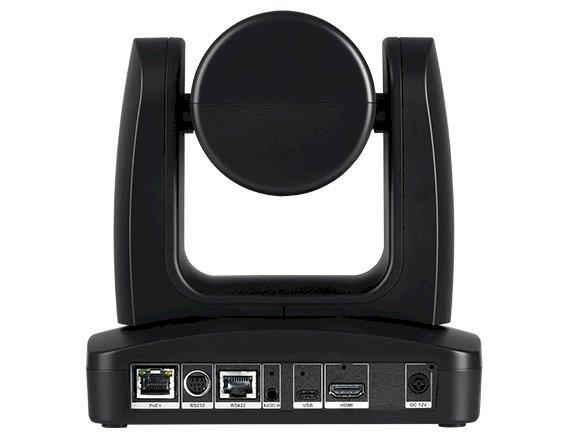

Ports & interfaces

  • HDMI ports quantity
  • 1
  • RS-232 ports
  • 1
  • DC-in jack
  • Yes
  • USB Type-C connector
  • Yes
  • Microphone in
  • Yes
  • Line-in
  • Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • Power over Ethernet plus (PoE+) ports quantity
  • 1
  • RS-422 ports
  • 1

Power

  • Operating voltage
  • 12 V
  • Operating current
  • 5 A
  • Power consumption (typical)
  • 18 W
  • AC input voltage
  • 100 - 240 V
  • DC input voltage
  • 12 V
  • Input current
  • 5 A
  • Power source type
  • AC, PoE
  • AC input frequency
  • 50 - 60 Hz

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • 20 - 80 °C
  • Operating relative humidity (H-H)
  • -20 - 60%
  • Storage relative humidity (H-H)
  • 20 - 95%

Network

  • Network configuration
  • DHCP, IP Address, Gateway, Subnet Mask, DNS
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Network streaming
  • Yes
  • Multi-stream capability
  • 2 (RTSP / Web Page), 1080p 60fps (max.)
  • Bit rate control
  • Constant Bit Rate (CBR), Variable Bit Rate (VBR)
  • Bit rate range
  • 512 - 32000 Kbit/s
  • Supported network protocols
  • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

Video

  • Supported video modes
  • 720p, 1080i, 1080p, 2160p
  • HD type
  • 4K Ultra HD
  • Maximum frame rate
  • 30 fps
  • Resolution at capture speed
  • 1280x720@50fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@30fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps, 3840x2160@25fps, 3840x2160@29.97fps, 3840x2160@30fps
  • Video formats supported
  • H.264, H.265
  • Number of TV lines
  • 1400

Packaging content

  • AC adapter included
  • Yes
  • Screws included
  • Yes
  • Cables included
  • RS-232
  • Number of screws
  • 10
  • Cable ties included
  • Yes
  • Number of cable ties
  • 5
  • Mounting brackets included
  • Yes
  • Number of cable fixing plates
  • 2

Logistics data

  • Harmonized System (HS) code
  • 85258900

Audio

  • Noise reduction
  • Yes
  • Supported sample rates
  • 48 kHz
  • Audio channels
  • 2
  • Audio codecs
  • AAC-LC (48 / 44.1 / 32 / 24K), G.711, PCM (8K)

System requirements

  • Windows operating systems supported
  • Windows 10, Windows 7, Windows 8, Windows 8.1

Camera

  • Megapixel (approx.)
  • 8 MP
  • Sensor type
  • CMOS
  • Optical sensor size
  • 25.4 / 2.8 mm (1 / 2.8")
  • Optical zoom
  • 12x
  • Digital zoom
  • 12x
  • Focal length range
  • 3.9 - 46.8 mm
  • Minimum illumination
  • 0,4 lx
  • Signal-to-Noise Ratio (SNR)
  • 50 dB
  • Aperture range (F-F)
  • 1.6 - 2.8
  • PTZ control
  • Yes
  • 3D NR (Noise Reduction)
  • Yes
  • Horizontal field of view (wide)
  • 70°
  • Horizontal field of view (tele)
  • Vertical field of view (wide)
  • 42°
  • Vertical field of view (tele)
  • White balance
  • Auto, Manual
  • Gain control type
  • Auto/Manual
  • PTZ protocols
  • Pelco-P/D, VISCA
  • Fastest camera shutter speed
  • 1/3200 s
  • Auto exposure
  • Yes
  • Sensor zoom
  • 2x
  • Minimum working distance (wide)
  • 30 cm
  • Maximum working distance (tele)
  • 150 cm
