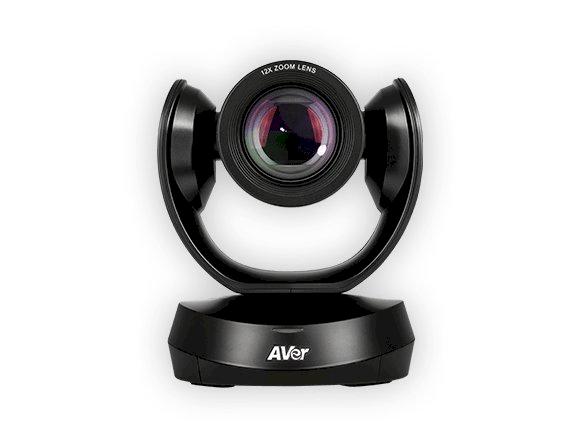

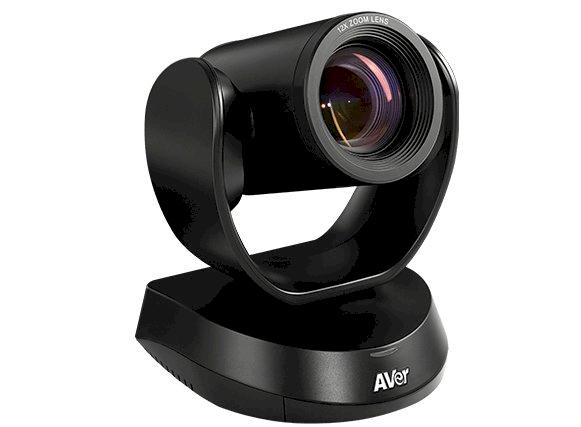

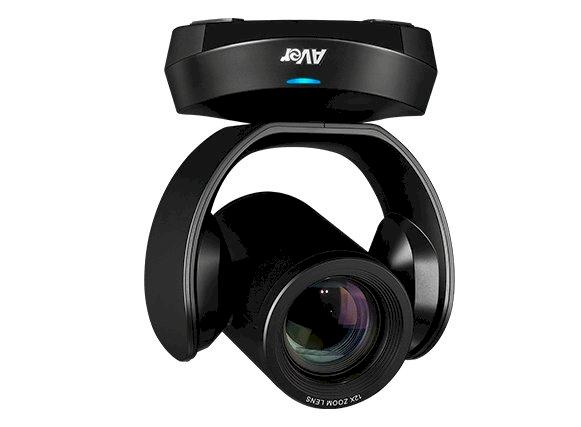

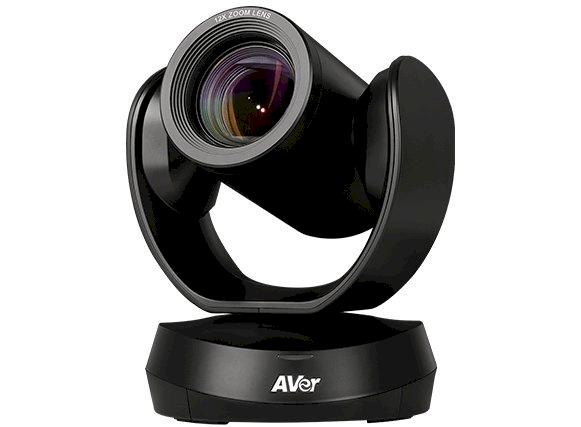

CAM520 Pro2

Code: 61U3410000AF EAN/UPC: 4719552126613




€ 999,00 + VAT
Recommended End User Price
  • € 999,00 + VAT
  • Recommended End User Price
  •


Description:

Professional conferencing camera for mid-to-large rooms
The CAM520 Pro2 is an industry-leading conferencing camera. Its 24X total zoom, upgraded AVer SmartFrame, Preset Framing, Sony True WDR, IP video streaming, and a PoE port take your video conferencing experience to the next level!

Present Every Detail with an 24X* Total Zoom
Claim your advanced business benefits by presenting products in ultimate clarity and showing full details with an 24X* total zoom. The CAM520 Pro2 provides smoother video imaging than ever with up to 1080p, 60fps quality. Zoom in tightly on every facet of your products to win more business!

Hold Efficient and Safe Meetings with Upgraded AVer SmartFrame
Keep meetings efficient and safe with AVer’s upgraded SmartFrame. This function uses next-generation facial and body detection to automatically frame people who are wearing masks or presenting any facial profile from up to 7~10 meters away!

Smartly track presenters through preset areas by adding a CAM520 Pro2 and its Preset Framing mode. You can set multiple preset viewing areas that the camera will automatically follow presenters through. There’ s no need for a remote control!

Access Video Calls Without the Hassle of Connecting a USB Cable!
AVer Virtual Streaming technology makes the CAM520 Pro2 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs.

Share Live Video Online Anytime with IP Streaming
Livestream on YouTube or Facebook! Easily create live video content with the CAM520 Pro2 by using an H.264 RTSP/RTMP stream to your cloud base or on-premise streaming delivery network.

Enterprise-Grade Imaging with True WDR
Enjoy vivid meetings even in high-contrast backlight environments when you use the CAM520 Pro2. Embedded Sony True WDR is effective at up to 120dB, automatically refining highlights, shadows, and white balance. You deserve to experience enterprise-grade imaging in every meeting.

  • DATA SHEET
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • PTZ Indoor
  • Product line:
  • Full Hd 1080P

Packaging data

  • Package width
  • 256 mm
  • Package depth
  • 256 mm
  • Package height
  • 274 mm
  • Package weight
  • 3,33 kg
  • Package type
  • Box

Weight & dimensions

  • Width
  • 182 mm
  • Depth
  • 142,7 mm
  • Height
  • 153 mm
  • Weight
  • 1,47 kg
  • Remote control dimensions (W x H x D)
  • 200 x 50 x 21 mm

Performance

  • Remote control function
  • Yes
  • Plug and Play
  • Yes
  • Remote control type
  • IR

Design

  • Product colour
  • Black
  • Mounting type
  • Stand
  • Tilt angle range
  • -30 - 90°
  • Pan range
  • -170 - 170°
  • LED indicators
  • Status
  • Country of origin
  • Taiwan
  • Web-based management
  • Yes

Ports & interfaces

  • RS-232 ports
  • 1
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
  • 1

Power

  • AC input voltage
  • 100 - 240 V
  • DC input voltage
  • 12 V
  • Input current
  • 2 A
  • Power source type
  • AC
  • AC input frequency
  • 50/60 Hz

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Storage relative humidity (H-H)
  • 20 - 80%

Network

  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Supported network protocols
  • RTSP, RTMP

Video

  • Supported video modes
  • 240p, 360p, 480p, 720p, 900p, 1080p
  • Maximum video resolution
  • 1920 x 1080 pixels
  • HD type
  • Full HD
  • Maximum frame rate
  • 60 fps
  • Video formats supported
  • M-JPEG, NV12, YUV, YUY2

Packaging content

  • Remote control included
  • Yes
  • Screws included
  • Yes
  • Cables included
  • AC, USB
  • Quick start guide
  • Yes
  • Mounting kit
  • Yes
  • Cable ties included
  • Yes
  • Power supply included
  • Yes
  • Warranty card
  • Yes

Logistics data

  • Harmonized System (HS) code
  • 8517691000

Audio

  • Built-in microphone
  • Yes
  • Built-in speaker(s)
  • Yes

System requirements

  • Windows operating systems supported
  • Yes
  • Mac operating systems supported
  • Yes
  • Other operating systems supported
  • ChromeOS
  • Minimum processor family
  • Core i5
  • Minimum processor speed
  • 3,2 GHz
  • Minimum RAM
  • 4096 MB
  • Minimum processor
  • Intel Core i5-4460

Camera

  • Combined zoom
  • 24x
  • Horizontal field of view
  • 76°
  • Number of camera presets
  • 10
  • Megapixel (approx.)
  • 2 MP
  • Optical zoom
  • 12x
  • Focal length range
  • 3.9 - 47.3 mm
  • Flip & mirror
  • Yes
  • Aperture range (F-F)
  • 1.8 - 2.8
  • Closest focusing distance
  • 1,5 m
  • PTZ control
  • Yes
  • Field of view (FOV) angle
  • 84.5°
  • White balance
  • Auto, Manual
  • Wide Dynamic Range (WDR)
  • Yes
  • Vertical field of view
  • 48°
