• PTC500S -  Auto-tracking camera Full HD
  • PTC500S -  Auto-tracking camera Full HD
  • PTC500S -  Auto-tracking camera Full HD

PTC500S

Code: 61U9P10000AH




€ 4.499,00 + VAT
Recommended End User Price
  • € 4.499,00 + VAT
  • Recommended End User Price
  •


Description:

Professional Auto Tracking Camera
Create engaging video for streaming, sharing and recording during lectures, demonstrations, video conferences, speeches, and more with the AVer PTC500S Professional Auto Tracking Camera.

The PTC500S boasts a powerful PTZ camera with 30X optical zoom and a secondary 120° FOV panoramic camera providing users crystal-clear full HD 1080p video resolution without the need of an experienced camera operator.

Wide Area Tracking
Capture Every Interaction
Track your target everywhere with Wide Area Tracking. Wide Area Tracking provides presenters the flexibility to leave the stage and interact with a crowd or students, all while being continuously tracked even if they become obscured by other people or objects.

Stage Tracking
Track Your Target in Any Environment
Get high quality, hands-free video streaming and recording with Stage Tracking. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic professional looking video.

Segment Tracking
Never Miss a Step
Enhance the capturing of content on multiple displays with Segment Tracking. Create 4 Content Zones that allow for immediate recognition and tracking of your target as they move between Content Zones, perfectly capturing the content on display rather than your presenter.

  • DATA SHEET
  • COMPATIBLE ACCESSORIES
  • DOCUMENTS


Overview

  • Tipology:
  • Finished product
  • Product category:
  • Cameras
  • Family:
  • PTZ Indoor
  • Product line:
  • Full Hd 1080P

Weight & dimensions

  • Weight
  • 1,75 kg
  • Width
  • 210 mm
  • Depth
  • 201,1 mm
  • Height
  • 176 mm

Design

  • Product colour
  • Black
  • Tilt angle range
  • -30 - 90°
  • Pan range
  • -175 - 175°
  • LED indicators
  • Power
  • Tilt speed (min)
  • 2 °/sec
  • Tilt speed (max)
  • 50 °/sec
  • Pan speed (min)
  • 2 °/sec
  • Pan speed (max)
  • 50 °/sec

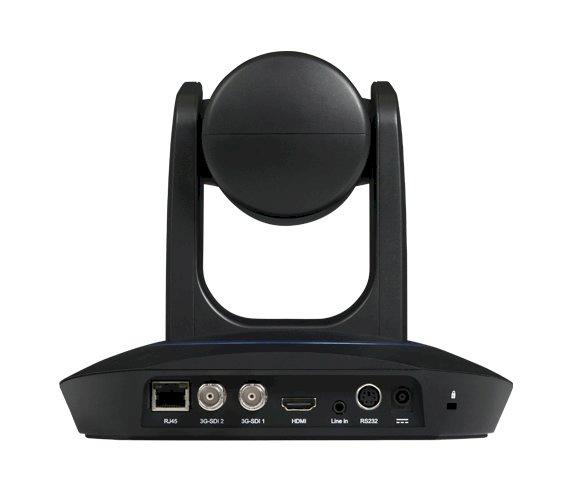

Ports & interfaces

  • HDMI ports quantity
  • 1
  • DC-in jack
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • 3G-SDI output
  • Yes

Power

  • DC input voltage
  • 12 V
  • Power source type
  • DC

Operational conditions

  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Storage relative humidity (H-H)
  • 20 - 95%

Network

  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Supported network protocols
  • RTSP, RTMP, ONVIF

Video

  • Supported video modes
  • 1080p
  • Maximum video resolution
  • 1920 x 1080 pixels
  • HD type
  • Full HD
  • Maximum frame rate
  • 60 fps
  • Resolution at capture speed
  • 1920x1080@60fps

Audio

  • Noise reduction
  • Yes

Camera

  • Megapixel (approx.)
  • 2 MP
  • Sensor type
  • CMOS
  • Optical sensor size
  • 25.4 / 2.8 mm (1 / 2.8")
  • Optical zoom
  • 30x
  • Digital zoom
  • 12x
  • Focal length range
  • 4.3 - 129 mm
  • Minimum illumination
  • 0,23 lx
  • Signal-to-Noise Ratio (SNR)
  • 50 dB
  • PTZ control
  • Yes
  • Field of view (FOV) angle
  • 120°
  • Slowest camera shutter speed
  • 0,2 s
  • Fastest camera shutter speed
  • 1/32000 s
